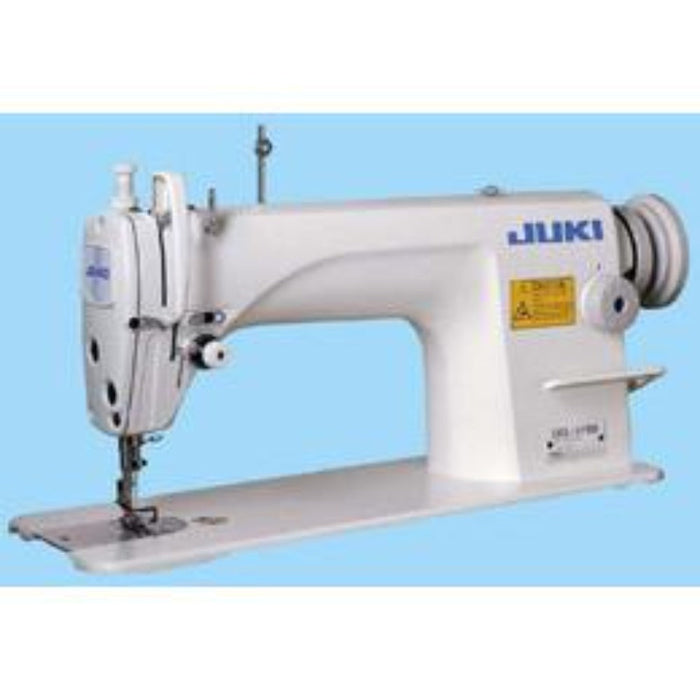

Juki DDL-8700H - Heavy Weight Industrial Lockstitch Machine Juki DDL-8700H Complete Set + Servo Motor

Juki DDL-8700H - 1 Needle, Lockstitch Machine

Warranty: 1 Year Warranty

JUKI's DDL-8700H has optimum balance and a highly rigid machine head created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material.

The machine inherits desirable features, such as high-speed stitching performance (5,500 sti/min, 4,000 sti/min for DDL-8700H), extreme stitching performance, ease of operation, and reliability from the highly evaluated previous JUKI lockstitch machines.

The DDL-8700H has easy-to-operate functions to improve operability. By providing a presser foot with a higher lift (13mm), a light-touch stitch dial, a throat plate with marker grooves (used as a guide for seam allowance), and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.

Maintainability is improved. Enhanced maintainability is ensured by the improved machine head, such as the incorporation of an eccentric pin to adjust the feed dog. In addition, JUKI's DDL-8700 is provided with a mounting seat for attachment to improve workability.

Sewing mechanisms demonstrate outstanding responsiveness to various materials. By thoroughly investigating and modifying the sewing mechanisms to achieve low-tension sewing, the DDL-8700H flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

	Free Sewing Machine Training and Join Our Sewing Lessons and Sewing Classes to learn about the machines and project.
	30-days free consulting, in-house training, and support at Sewing.sg.
	Trade-in options available and replace your old machines with upgrade program.
	Experience all the demo & display machine at our store - Bring your materials and test drive it.
	Wide range of payment method supported - Cash, NETS, Cheque Credit/Debit Cards, Installment, Paypal and etc.
	Free In-house Training session for each of the products.
	Warranty and Servicing from Experience in-house Technicians.

Applications

For sewing medium to heavy materials like vinyl, denim, canvas, and more.

Specifications

• Max Speed (S.P.M.): 4000
• Clearance Under Foot: 5.5mm by hand, 13mm by knee
• Needle Bar Stroke: 35mm
• Max Stitch Length: 5mm
• Needle: 1955 (135x5) (135x8 for leather)
• Bobbin: Metal
• Hook: 110-92459
• Bed Size: 7" x 18 25/32"
• Workspace: 10 1/4"

Downloads:

• Download Juki DDL-8700H Industrial Lockstitch Machine Catalogue

Juki DDL-8700H Industrial Lockstitch Machine Features

• The Juki DDL-8700H comes in a complete set with a table, stand, and clutch motor. This lockstitch sewing machine is made to handle thicker sewing threads and provides a stitch length of up to 7mm.
• Designed with a longer needle bar stroke, thick threads are beautifully tucked into heavy fabrics, resulting in neat, clean stitches. Ideal for sewing materials like sofa/car seats, canvas, and awnings.
• Longer stitch lengths are especially useful for sewing materials woven with short fibers or bonded non-fiber materials like paper, leather, and plastics.
