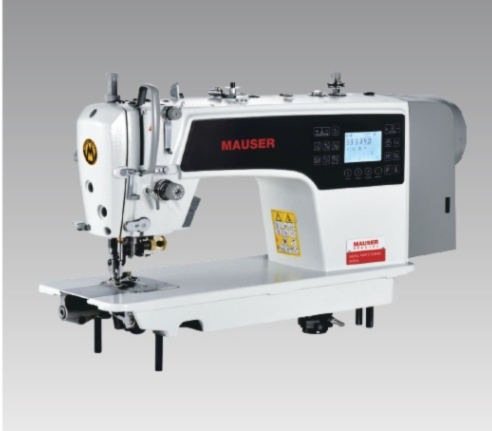

ML 8147-CS4-BC Single Needle Lockstitch Flatbed Sewing Machine with Side-Cutter

ML 8147-CS4-BC Side-Cutter Lockstitch Sewing Machine

Model: ML 8147-CS4-BC

Key Features:

• Integrated built-in large screen operation panel with illuminated logo
• Stepping motor control with one-to-two control functions: stitch length, reverse sewing, and pressure foot lift
• Trimming knife return lever, fixed knife holder, and dual-purpose flat seam cutter function
• Binding & edge sewing at the same time
• High efficiency hand wheel with improved ventilation, reducing temperature of motor and control box
• Capable of sewing 8 layers of denim, 1 layer of non-woven fabric, 2 layers of elastic knitted fabric, and 2 layers of mesh gauze fabric
• Continuous sewing without fine-tuning for stable, beautiful stitching

Performance Features:

• Single stepping motor control with one-to-two control functions: stitch length, reverse sewing, pressure foot lift, and standard USB interface
• Stitch length accuracy up to 0.1mm driven by stepping motor
• Locking function for stitch length with password; 9 different stitch patterns can be preset & sewn
• Equipped with side cutter; sewing and edge-trimming completed simultaneously for higher efficiency
• Widely used for shirts, suits, and trousers

Specifications:

• Needle: DBX1 #14
• Stitch Length: 5.0 mm
• Presser Foot Lift: 4.0 / 13 mm
• Needle Bar Stroke: 30.7 mm
• Speed: 4500 S.P.M.
• Needle Gauge: 1/4, 3/16, 1/8, 3/8
• Thread Take-up: 70 x 27 x 56
• Hook: 37144

Downloads

📄 Download Brochure

Notes:

• Delivery time: Within 1–2 weeks after order confirmation.
• Standard cutting width: 3.2 mm, 4.8 mm, or 6.4 mm.
