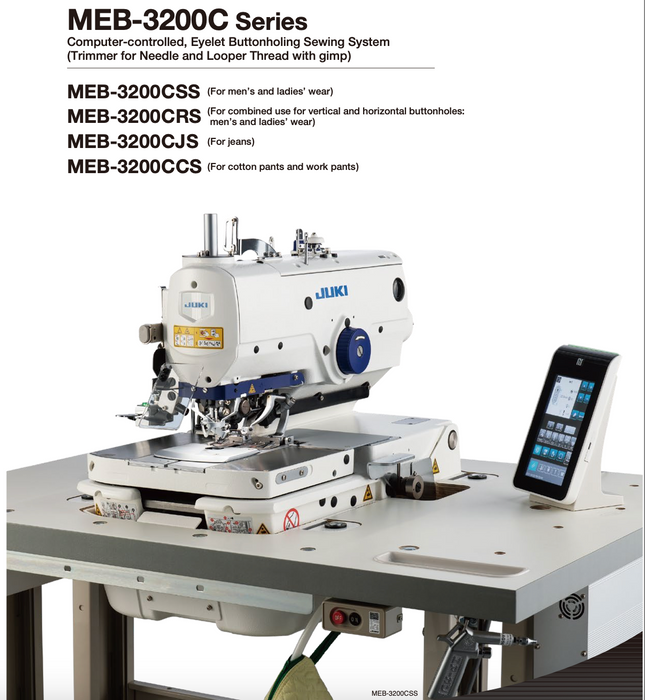

MEB-3200CSSKA: Suitable for combined vertical and horizontal buttonholes for men's and ladies' wear

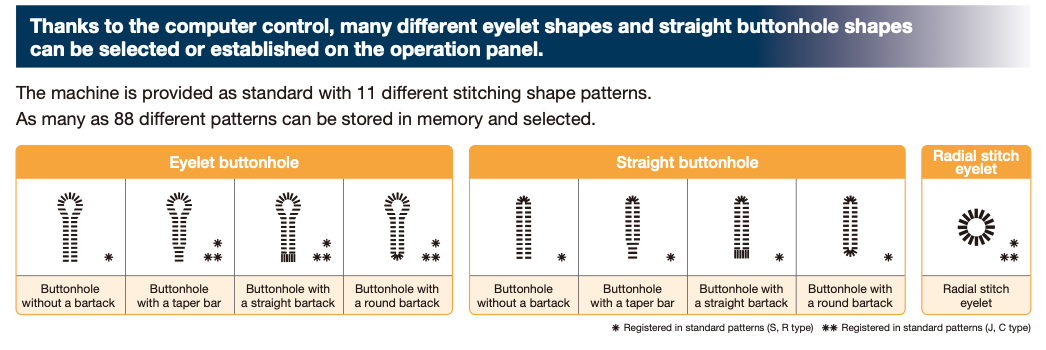

The electronically controlled machine allows precise selection and setting of various eyelet shapes. With its advanced Active Tension technology (electronic thread tension mechanism), the machine can consistently reproduce the same sewing conditions with ease.
Key Features
- Supports both vertical and horizontal buttonhole applications
- Active Tension system ensures consistent stitching quality
- High precision eyelet shape control
- Improved efficiency with reduced setup adjustments
- Stable thread tension for uniform seam quality
Juki MEB-3200 Buttonhole Machine Specifications
Model: MEB-3200CS
-
Thread Trimming Style: Longer or shorter remaining thread options
-
Sewing Speed: 400 – 2,200 sti/min (adjustable in 100 sti/min steps)
-
Sewing Length:
- 10 – 38 mm (with thread trimmer)
- 10 – 50 mm (without looper thread trimming device)
-
Work Clamp Options:
- S: 16 – 24 (26) mm
- M: 24 – 32 (34) mm (Standard)
- L: 32 – 40 (42) mm
-
Needle Throwing Width: 2 – 4 mm
-
Taper Bar Length: 0 mm, 3 – 15 mm
-
Needle: DO558 (Nm90 – Nm130)
Model: MEB-3200TS
-
Thread Trimming Style: Shorter thread cutting (without gimp)
-
Sewing Speed: 400 – 2,200 sti/min
-
Sewing Length: 10 – 34 mm
-
Needle Throwing Width: 2 – 3.2 mm
-
Taper Bar Length: 0 mm, 3 – 15 mm
-
Needle: DO558 (Nm100 – Nm110)
Advanced Features & Benefits
Consistent Sewing Quality
The MEB-3200C ensures consistent sewing conditions across different materials, significantly reducing setup time and improving productivity.
Color LCD Touch Panel
Equipped with a large, high-visibility color LCD panel for easy viewing of stitch patterns, settings, and functions. The intuitive interface minimizes operational errors and speeds up setup.
Easier Threading System
Threading is simplified using an air gun system, making operation faster and more efficient compared to conventional machines.
Energy Efficient Operation
Reduces standby power consumption by up to 55% compared to conventional machines while minimizing heat generation.
Enhanced Workability
- New machine head design allows efficient longitudinal buttonhole sewing
- Wider workspace under the clamp for easier material handling
- Semi-sunken design improves ergonomics and workflow
- External adjustment for material opening
Direct Drive Motor
The direct-drive system connects the AC servomotor directly to the hook shaft, providing faster startup, precise stopping, and reduced power consumption.
Easy Maintenance
- Simplified mechanism improves serviceability
- Gas-spring supported head for easy lifting and cleaning
Improved Working Environment
- Low noise operation without clutch mechanism
- Automatic removal of cloth chips for cleaner workspace
- Protected thread path reduces friction and environmental interference
