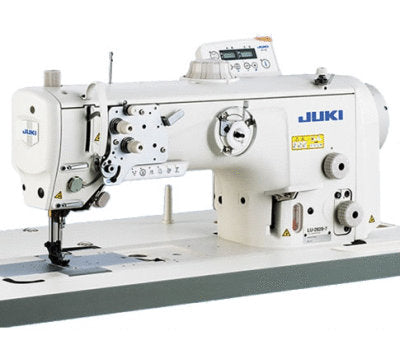

Juki LU-2810AS / SC922 / M51 / CP18C – Industrial Walking Foot Sewing Machine with Table & Stand

The Juki LU-2810AS / SC-922 / M51N / CP-18C is a semi-dry, direct-drive, 1-needle, unison-feed, walking-foot lockstitch sewing machine with a vertical-axis large hook. It comes fully assembled with a British RU/C wheeled stand, manufacturer-grade tabletop, drawer, and extras. Each unit is thoroughly tested, signed off, and ready to sew straight out of the box.

This model is part of the latest Juki 2800 Series, engineered for medium to heavy-weight materials such as leather, upholstery, vinyl, canvas, and marine clears. Specifically designed for professional upholsterers, automotive, and marine trimmers, the LU-2810AS provides superior handling of bulky and layered fabrics thanks to its expanded working space and extra-high presser foot lift (up to 20mm).

Equipped with an energy-efficient 750W M51N servo motor controlled by the SC-922 control box, and paired with the intuitive CP-18 operation panel, this machine ensures precise control, power, and productivity in every stitch. The combination of direct-drive technology and advanced feed mechanisms makes it a reliable choice for industrial sewing environments.

• 1-needle, top & bottom-feed walking foot (needle feed + presser foot + feed dog)
• Part of Juki’s latest 2800 Series with design enhancements for heavy fabrics
• SC-922 Control Box: energy-saving, noise/voltage resistant, compact & lightweight
• M51N High-Torque Servo Motor (750W): high-speed penetration, ideal for thick materials
• CP-18 Operation Panel: production monitoring, reverse/backtack, stitch programming
• XL drop-in bobbin (2.0-fold hook capacity, vertical-axis hook)
• Stitch length adjustment up to 9mm

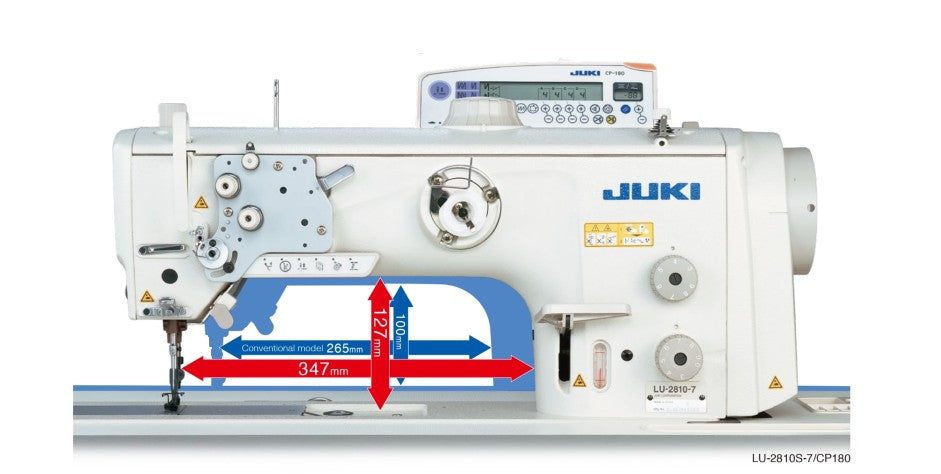

• High & semi-long arm: 347mm length × 127mm height

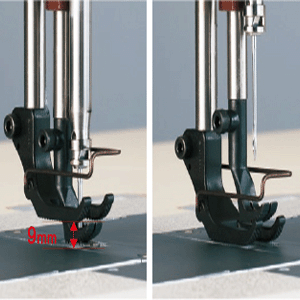

• Extra-high presser foot lift: up to 20mm clearance for bulky fabrics
• Semi-dry head oiling system for cleaner operation & reduced maintenance

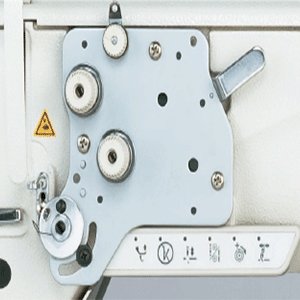

• Advanced stitch control: adjustable walking foot height, adjustable foot pressure, dual tension assembly with quick-release lever
• Reliable choice for upholstery, automotive, leather, canvas & marine trimming

• Max. Sewing Speed: 3,000 sti/min
• Max. Stitch Length: 9mm
• Max. Presser Foot Lift: 20mm
• Hook: Vertical-axis, 2.0-fold capacity XL bobbin
• Needle System: 135x17 (Size 125–180)
