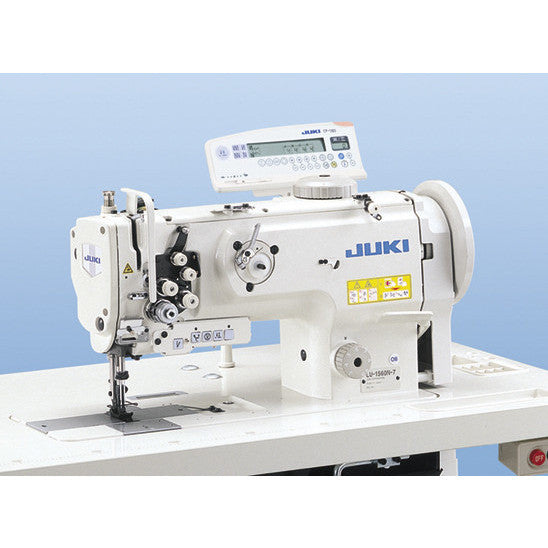

Juki LU-1560N - Double Needle Industrial Unison Feed Lockstitch Machine with Vertical Axis Large Hook

Juki LU-1560N - Industrial Unison / Compound Machine 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hooks.

JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 2-needle machines, other models intended for special purposes are available, one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.

	Covered by 1 year Ban Soon Care inclusive 365 days of free consulting, in-house training at www.Sewing.sg, after-sales services upon purchase new sewing machines with Ban Soon Sewing Machine Pte Ltd.
	Research & Development: Consult us with the possibility of each sewing machines, embroidery machines, overlock machines, ScanNCut machines and coverstitch machines that you can achieve. Show us the sewing patterns result that you desire, we will research and provide you the easiest solutions and the tools for a smooth  sewing experience.
	Trade-in options available and replace your old machines with upgrade program.
	Experience all the demo & display machines at our showroom - Bring your dedicated materials and test drive it. We will recommend the most suitable machine for you based on your profile [not the most expensive machines].
	Flexible payment method supported - Cash, PayNow [Recommended - Paperless] , PayLah [Recommended - Paperless] , Bank Transfer, NETS, Cheque Credit/Debit Cards, Installment*, and etc.
	Sewsol Equipment Sharing available - Wide range selection of Sewing Machines, Embroidery Machines, Software, ScanNCut Machine, Serger or Overlock Machines, Coverstitch Machines, Cylinder Bed Unison Feed Machines for Leather*, Industrial Machines etc.
	Warranty and Servicing from Experience in-house Professional Technicians.

Contents

• Juki LU-1560N Double Needle Industrial Lockstitch Machine Features
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Highlights
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Accessories and Parts
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Review
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Price and Where to find us
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Service and Repair
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Sewing Lessons and Classes
• Juki LU-1560N Double Needle Industrial Lockstitch Machine Manufacturers, Suppliers, Vendors and Wholesale

Juki LU-1560N Double Needle Industrial Lockstitch Machine Highlights

The two-needle machine with a thread trimmer offers basic performance that is ideally suited to sewing heavy materials. The machine utilizes a new mechanism that does not change the ratio of the alternate vertical movement of the walking foot and presser foot, even when the material thickness changes. The mechanism helps prevent slippage between the upper and lower materials even when a heavy material is used.

Basic Performance

Improved Operability

• The stitch length can be easily selected by the stitch dial.
• The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel (φ160).
• A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. (Machines equipped with automatic thread trimmer are excluded.)
• The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head.
• The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button.

The area around the needle entry is designed to be easily observed



Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

The walking foot and presser foot's alternating vertical movement can be set and changed with ease

• The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
• In addition the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are maintained at all times.
• The machine is equipped with an instantaneous changeover device for alternating the vertical movement amount of the walking foot and presser foot, which demonstrates its capability for processes involving sewing products with a lot of multi-layered portions.

Thread trimming without fail



The machine leaves a shorter needle thread after thread trimming, improving thread consumption efficiency. With a rigid knife and improved cam shape, the thread trimmer cuts thread as thick as #5 without fail.

A helpful automatic reverse feed function is provided as standard

• With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.
• The auto-lifter (pedal switch type) helps to increase efficiency by reducing operator fatigue.

Juki LU-1560N Double Needle Industrial Lockstitch Machine Features

A new feed mechanism with a rectangular feeding motion prevents stitch gathering

• The new mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering.
• The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.

The alternating vertical movement mechanism prevents irregular stitches

• The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.
• Even when a heavy-weight material is used, the presser foot lift does not decrease. This means that the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.
• The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted up to the maximum of 6.5mm according to the height of multilayered portions of material.

Consistent Seam Quality

• With the adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism, and a unison feed mechanism, the machine can feed heavy materials powerfully and smoothly. Well tensed seams are consistently produced without pitch errors.
• With its maximum stitch length of 9mm, the machine can be applied to a broader range of uses.

Higher Lift of the Presser Foot



The high, 16mm (13mm for LU-1565N) presser foot lift enables easy material handling.

The highly efficient vertical-axis double-capacity hook is equipped as standard



With the adoption of this vertical-axis double-capacity hook, the frequency of bobbin thread changing is reduced, promising sewing work of increased efficiency.

LU-1560N, LU-1561N (with automatic lubricating mechanism)

• The standard 2-needle type machine that delivers the basic functions and performance best suited to the sewing of heavy materials.
• Automatic lubricating mechanism improves maintainability. The sub oil pan and double filter prevent dust from entering the oil.

Juki LU-1560N Double Needle Industrial Lockstitch Machine Accessories and Parts

Download Files:

Download Juki LU-1560N Catalogue

Download Juki LU-1560N Manual

Juki LU-1560N Double Needle Industrial Lockstitch Machine Review



Juki LU-1560N Double Needle Industrial Lockstitch Machine Price and Where to find us



Juki LU-1560N Double Needle Industrial Lockstitch Machine Service and Repair



Juki LU-1560N Double Needle Industrial Lockstitch Machine Sewing Lesson and Classes



Juki LU-1560N Double Needle Industrial Lockstitch Machine Manufacturers, Suppliers, Vendors and Wholesale

Accessories

Wide Table	Unavailable
Threads	Singer Thread
Bobbins	Available
Footers	Available
