DLN-9010A Needle Feed Lockstitch Sewing Machine with Automatic Thread Trimmer. JUKI
- Descriptions

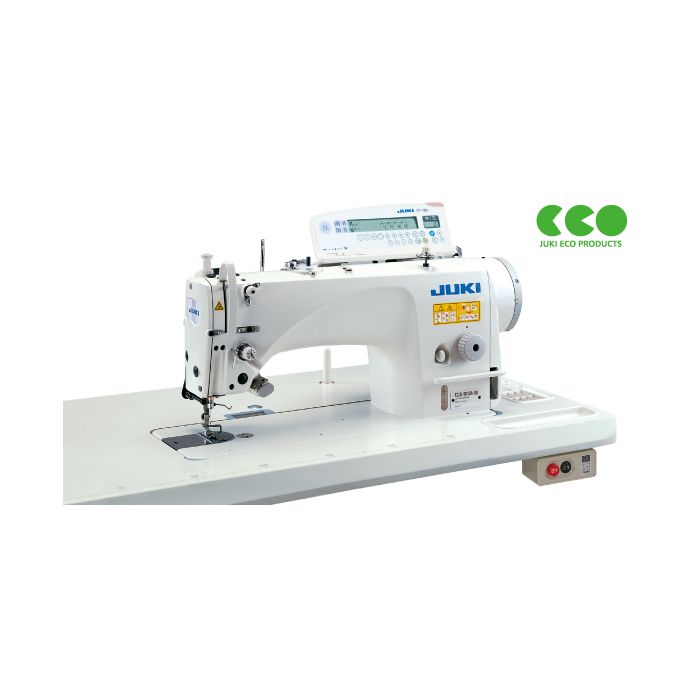

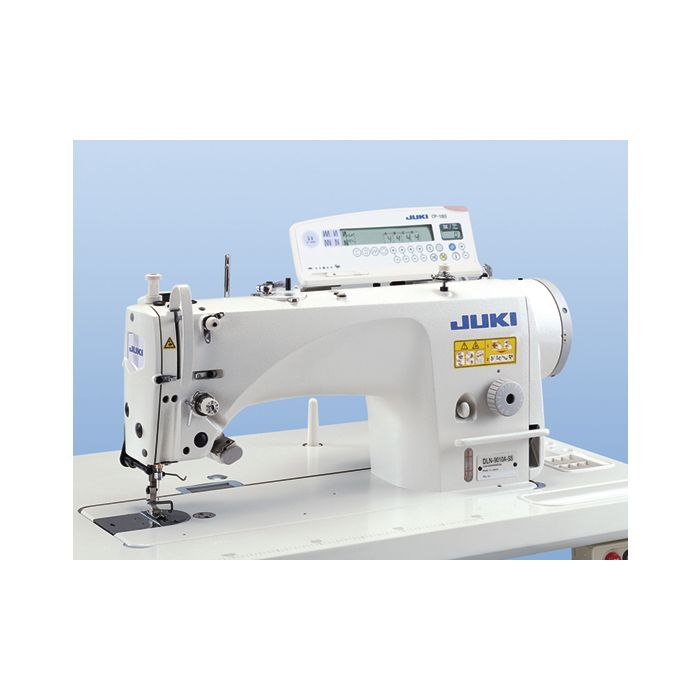

JUKI Needle Feed, DLN-9010A Direct-Drive Lockstitch Sewing Machine
Elevate your garment production with the JUKI DLN-9010A, a premium, high-speed direct-drive lockstitch sewing machine crafted for durability and precision. Ideal for professional applications, this advanced single-needle machine is designed to tackle a wide range of fabrics, including slippery and difficult-to-feed materials. Whether you're working on outerwear or men’s shirts, the DLN-9010A ensures smooth, consistent stitching every time.

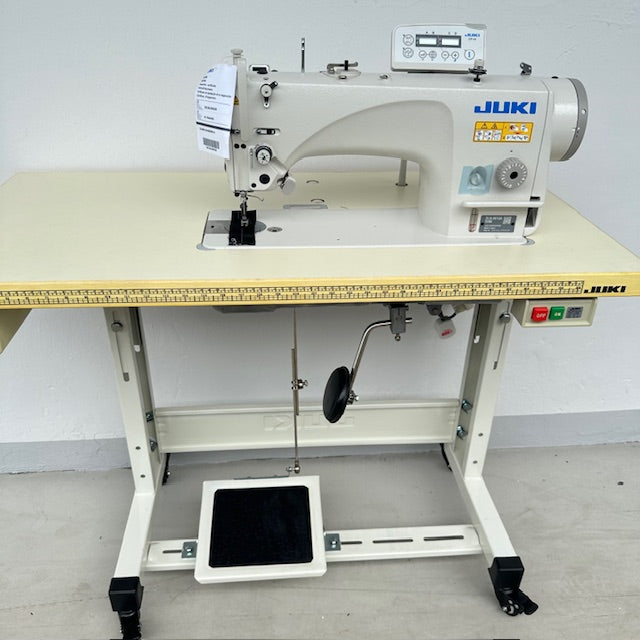

DLN9010ASSWB/SC920/CP18A + Table top and Stand
Warranty: 1 Year Warranty + Free Training

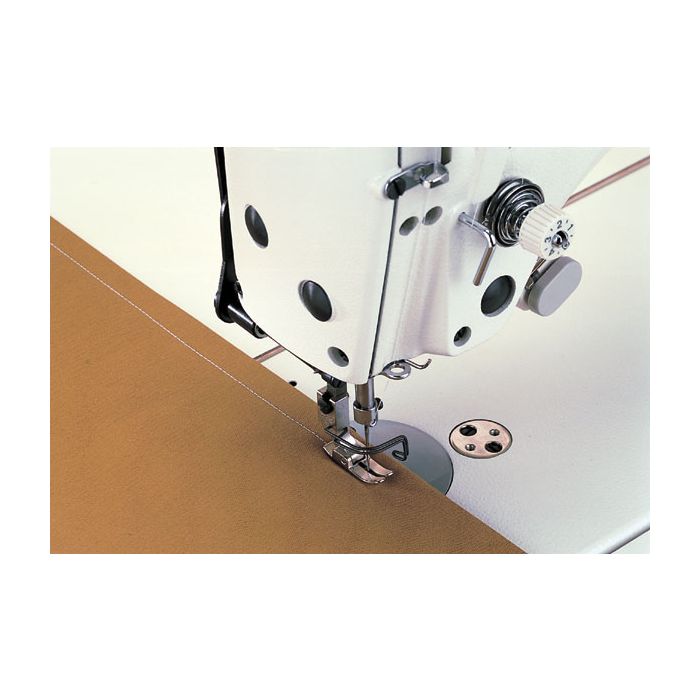

- The machine produces seams with accurate stitch length and prevents slippage of the upper fabric. The machine ensures beautiful seam quality free from stitch gathering, even when a hard-to-feed material is used.
 |
Covered by 1 year Ban Soon Care inclusive
365 days of free consulting, in-house training at www.Sewing.sg, after-sales services upon purchase new sewing machines with Ban Soon Sewing Machine Pte Ltd. |
 |
Research & Development: Consult us with the possibility of each sewing machines, embroidery machines, overlock machines, ScanNCut machines and coverstitch machines that you can achieve. Show us the sewing patterns result that you desire, we will research and provide you the easiest solutions and the tools for a smooth sewing experience. |
 |
Trade-in options available and replace your old machines with upgrade program. |
 |
Experience all the demo & display machines at our showroom - Bring your dedicated materials and test drive it. We will recommend the most suitable machine for you based on your profile [not the most expensive machines]. |
 |
Flexible payment method supported - Cash, PayNow [Recommended - Paperless] , PayLah [Recommended - Paperless] , Bank Transfer, NETS, Cheque Credit/Debit Cards, Installment*, and etc. |
 |
Sewsol Equipment Sharing available - Wide range selection of Sewing Machines, Embroidery Machines, Software, ScanNCut Machine, Serger or Overlock Machines, Coverstitch Machines, Cylinder Bed Unison Feed Machines for Leather*, Industrial Machines etc. |
 |
Warranty and Servicing from Experience in-house Professional Technicians. |
Key Features & Benefits

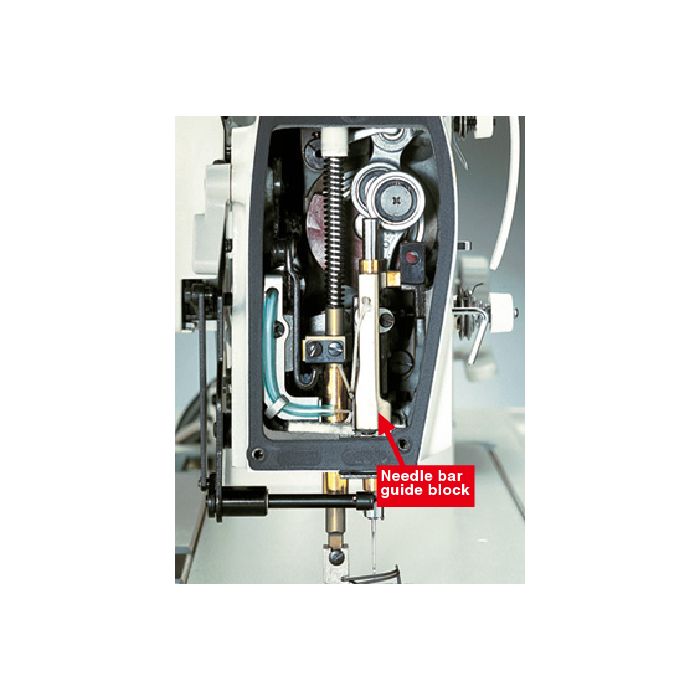

Advanced Needle Feed Mechanism
Experience optimal fabric feeding and precise stitch lengths with the innovative needle-feed mechanism. This feature minimizes stitch gathering and maintains alignment, making it perfect for complex sewing tasks.
Oil Pan-Less Design
Enjoy a clean workspace with the oil pan-less design, which reduces oil usage and leakage. With minimal lubrication applied directly to essential components, maintenance is simplified—just tilt the machine head for quick upkeep.
Energy-Efficient Control Box (SC-920A)
Equipped with an energy-saving control box, the DLN-9010A cuts power usage by approximately 20% during standby, contributing to cost savings and an eco-friendly workspace.
Customizable Operation Panels
Choose between two operation panel options—CP-18A and CP-180A—each featuring production support functions. Tailor the machine’s operations to meet your specific production needs with six different modes for enhanced productivity.
Versatile Fabric Handling
Easily convert from needle feed to bottom feed with simple adjustments and gauge replacements, making the DLN-9010A adaptable for various fabric types and processes.
Performance Specifications
- Max Sewing Speed: Up to 5,000 stitches/minute for light- to medium-weight materials; 4,000 stitches/minute for heavy-weight materials
- Max Stitch Length: 4.5 mm
- Needle Bar Stroke: 33 mm
- Presser Foot Lift: 5.5 mm (hand), 15 mm (knee), 10 mm (auto lift)
- Hook Type: Automatic-lubricating full-rotary hook
- Lubrication Type: Minimal lubrication with JUKI New Defrix Oil No.1
- Distance from Needle to Machine Arm: 300 mm
- Bed Size: 517 mm x 178 mm
- Power Requirements: Available in single-phase (100-120V, 200-240V) and three-phase (200-240V) with 310 VA power consumption
Additional Sub-parts Specifications
| C/No. | Pkgs | No. of Units | Description | Gross Weight (kg) | Net Weight (kg) |
|---|---|---|---|---|---|
| 1-1 | 1 | 1 | DLN9010ASSWB | 59.30 | 50.00 |
| 2-2 | 1 | 1 | SC920 | 5.66 | 4.47 |
| 3-3 | 1 | 1 | M51N | 14.90 | 13.39 |
| 4-4 | 1 | 1 | Stand for Sewing Machine | 17.00 | 17.00 |
| 5-5 | 1 | 1 | Table for Sewing Machine | 13.00 | 12.74 |
| 6-6 | 1 | 1 | Drawers with Accessories | 0.21 | 0.21 |
| CTN No. | SKU Code | Description | Location |
|---|---|---|---|
| 1-1 | LU1510N708BZZ-AA | Industrial Sewing Machine | Japan |
| 2-2 | SC922AK-AA4 | Sewing Machine Control Panel | Taiwan |
| 3-3 | MSTN-AA | Motor for Sewing Machine | China |
| 4-4 | REN-TSI | Adjustable Stand | Malaysia |
| 5-5 | REN-TABLE.R81 | Table for LU-1500-7 Series | Malaysia |
| 6-6 | REN-DRAWERS | Drawers with Accessories | Malaysia |
| 6-6(1) | 83104390 | CP18C-AA | Taiwan |
Why Choose the JUKI DLN-9010A?
Built for performance and efficiency, the JUKI DLN-9010A is your go-to machine for high-speed, high-quality sewing applications. Its direct-drive system, compact AC servomotor, and energy-saving features make it an exceptional choice for factories, workshops, and professional sewers alike. Invest in versatility and precision with the JUKI DLN-9010A—where durability meets innovative design.
