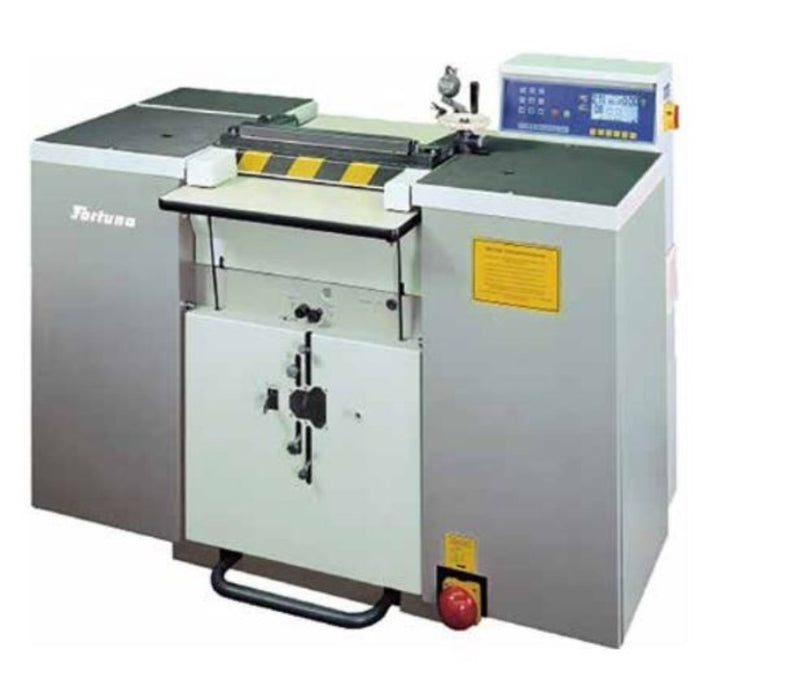

Fortuna NAF470-G 380-420V/50Hz Bandknife Splitting Machine.
Precise band knife splitting machine is used in the rubber and plastic industry as a
laboratory and production machine.
Highest quality and ergonomically designed machine layout ensures a performance of all operations in shortest time with fatigue-proof working.
- Digital display of the splitting and scrap thickness
- Machine management
- Constant knife edge position by automatic adjusting knife with control via magnifying glass
- The splitting thickness up to 10 mm is monitored in 0,05 mm steps, over 10 mm in 0,1 mm steps
- AC motors
- Upper driven presser roll
- Rubber feed roll
- Scrap suction
- Stepless electronically adjustable feed drive
- Thickness gauge
- Work lamp
- Sound absorber for scrap suction
- Grinding dust suction with metal filter
OPTIONS
- Roller way table 8 mm
- Additional guides
- Lubrication device
- Steel feed roll knurled
- Feed roll left knurled, right rubber
- Upper feed roll knurled
- Manually stepless adjustable feed drive gear motor
- Reinforced band knife motor 3 kW
- Roller way table, adjustable up to 20°
- Increased clearance up to 34 mm, angled or straight
- Stepless adjustable band knife drive
- Transportation device
- Switch for scrap suction
Technical data
- Working width (mm): 470
- min. splitting thickness (mm): 0,5
- max. clearance (mm): 8,0; 34,0
- Noise emission dB (A): 78
- Stepless electronic adjustable feed drive (m/min): 2 - 24
- Dimensions (cm) length, width, height: 160, 100, 130
- Electrical power supply (kVA): 5
- Net weight (kg): 700
- Packing dimensions (cm) Length, width, height: 175, 115, 146
