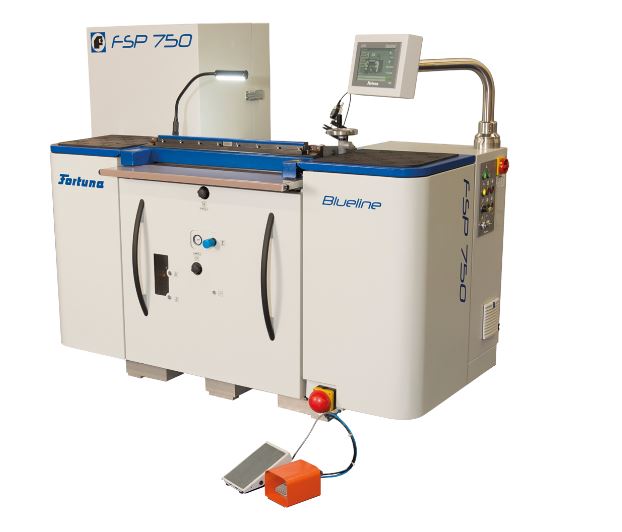

Fortuna FSP 750 Blueline Energy Efficient Bandknife Splitting Machine With a Working Width of 750 mm
The new FORTUNA splitting machine FSP 750 Blueline is characterized by optimized and energy- efficient drives.
For the first time, a particularly user-friendly intuitive interface with a touchscreen is implemented. The new flexible support arm gives the operator the possibility to set the position of the touch panel individually to personal requirements.
With the new safety equipment the FSP 750 Blueline sets new standards in the safety technology and simultaneously the handling for the operator was simplified.
The new machine series stands for ergonomic and maintenance-friendly design, which allows fast and uncomplicated access for service.
- Manual grinding device with CBN grinding wheels
- Transportable with pallet truck
- Individual adjustable feed drive
- Individual standby-mode
- Readout of band knife width
- Toggle measurement unit
- Measured value correction
- Digital thickness gauge
- Readout of operation and fault state
- Ethernet and USB-Interface
- Self-positioning band knife
- Work lamp
- Carrier with roll
- Operator-guided maintenance
- Swiveling and height-adjustable touch panel
- Steel feed roll knurled
- Standardized communication protocol - OPC UA
- Multifunction pedal
OPTIONS
- Inspection system for band knife sharpness (activates grinding device) and bevel symmetry
- Individually adjustable band knife drive
- Monitoring band knife wear
- Individually adjustable scrap suction
- Monitoring scrap box
- Remote maintenance via WLAN-router
- Operation data collection
- Electronical readout of power consumption
- Lubrication device
- Roller way table
- Rubber feed roll
- Increased clearance 20 mm
- Table extension
- Swiveling carrier for presser roll / presser bar
Technical data
- Working width (mm) 750
- min. splitting thickness presser bar / presser roll (mm) 0,4 / 0,9
- max. clearance (mm) 8,0
- Noise emission dB (A) 78
- Dimensions (cm) length, width, height 212, 124, 165
- Feed drive (m/min) 2 - 24
- Electrical power supply (kVA) 7,0
- Compressed air connection min. 6 bar
- Net weight (kg) 1070
- Packing dimensions (cm), 2 packages:
- Machine length, width, height 200, 120, 160
- Suction device length, width, height 180, 85, 85
Download Files:
Download Fortuna FSP 750 Brochure
