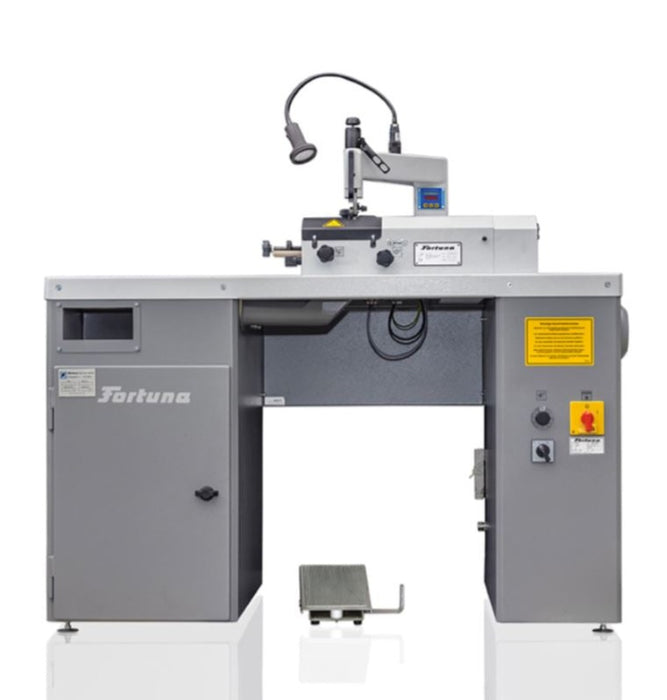

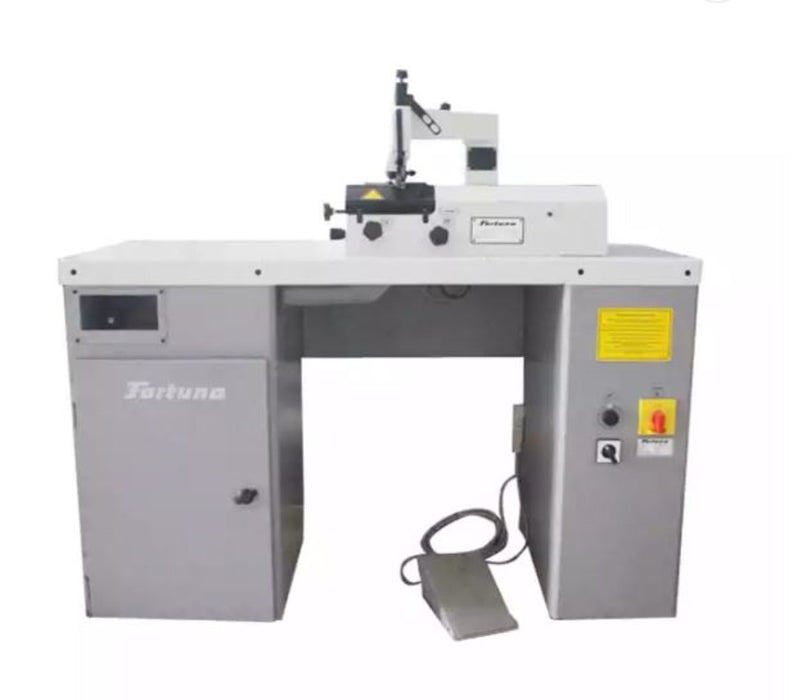

Fortuna ES-50 Single-Scarf Skiving Machine
Single scarf skiving machine for skiving up to 50 mm working width for shoes, leather
goods and orthopaedic industry.
The ES 50 allows to skive materials like leather, similar materials, technical textiles,
laminated materials etc. The feed speed is variable adjustable in relation on material,
skiving shape and operator skills to avoid production waste.
- Easy to service
- Work table with suction and scrap box
- Knife position indicator
- Scrap ejector easily and quickly re-adjustable

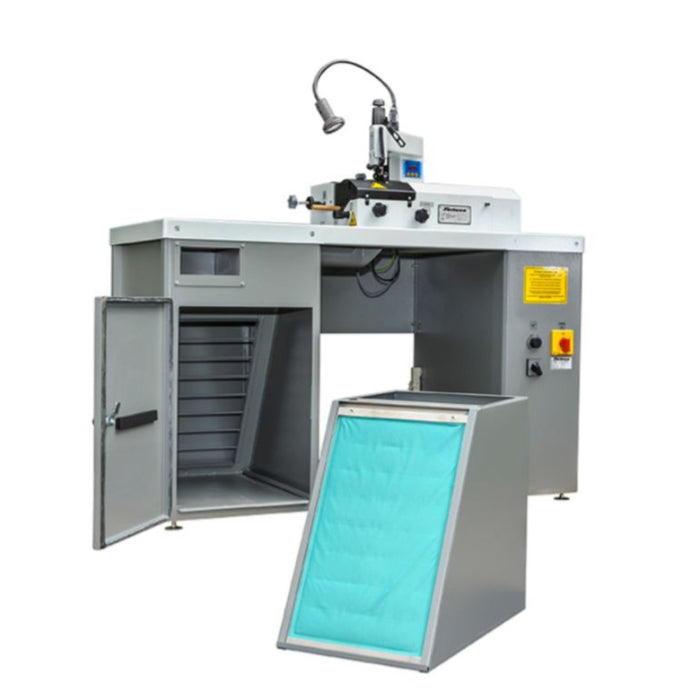

- User friendly grinding dust disposal through filter cassette
- Low noise emission
- Electronically adjustable feed speed preselected by potentiometer
- Step less electronically adjustable feed by foot pedal
OPTIONS
- Various accessories (presser rolls; feed rolls etc.) for different applications
- Work lamp
- Cover
- Thickness gauge
- Lubrication device
- Pneumatic scrap removing device
- Adjustable bell knife drive
- Height adjustable work table
- Reinforced suction device
- Sliding table
- Conversion kit CBN
- Emergency stop
- Milling tool for glue removal
- Scrap basket
Technical data
- Skiving width (mm): Up to 50
- Skiving angle: 0° - 20°
- Skiving tool: Foot
- Noise emission dB (A): 73
- Feed speed (cm/sec): 0 - 85 step less
- Dimensions length, width, height (cm): 126, 57, 126
- Electrical power supply (kVA): 1
- Net weight (kg): 180
- Packing dimensions (cm) Length, width, height: 140, 72, 140
Download Files:
Download Fortuna ES50 Brochure
