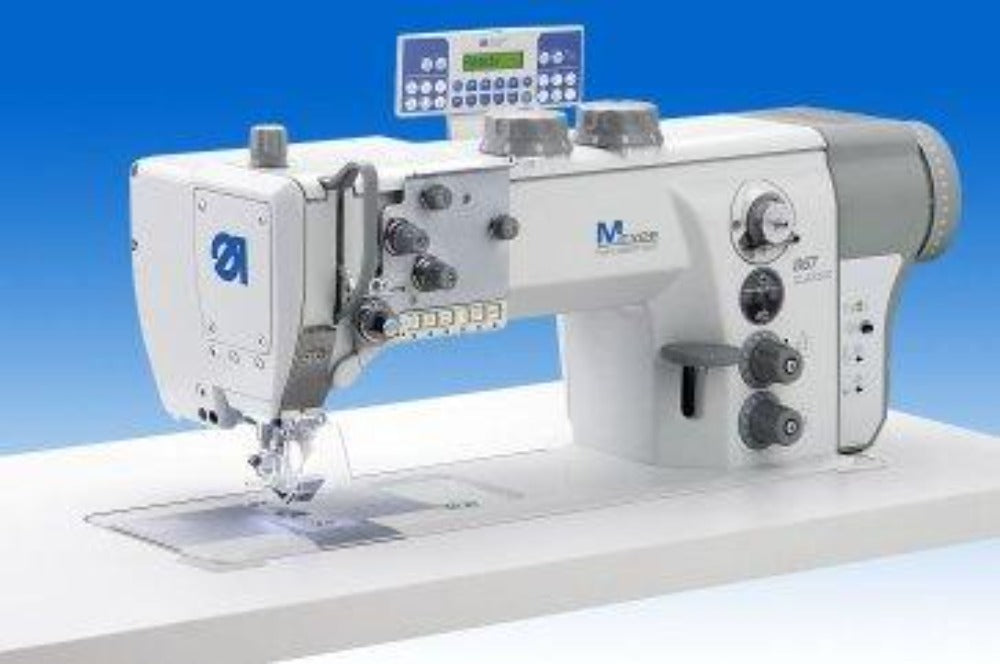

DURKOPP ADLER 867-393342 M CLASSIC VF

The special sewing processes “binding and/or trimming of material edges” involved in the manufacture of home and car upholstery and technical textiles call for particularly flexible machine concepts with maximum performance.

Owing to the robust, state-of-the-art design of the binding device and the edge trimmer the application-specific machine classes M-TYPE 867-M are particularly suitable for these special applications.The maintenance-free drive concept with integrated direct drive and the DAC classic control including control panel enable a maximum torque and high energy efficiency. Furthermore, the multitude of available sewing equipment and attachments contributes to an essential quality improvement and an increased manufac- turing output.

The machines are equipped with the features corresponding to the M-TYPE CLASSIC version like thread trimmer, automatic backtacking, pneumatic sewing foot lift, integrated LED sewing lamp and maintenance indicator. The integrated second thread tension, quick stroke adjustment with speed adaptation enable highest productivity and quality.

 

Typical Field of Application

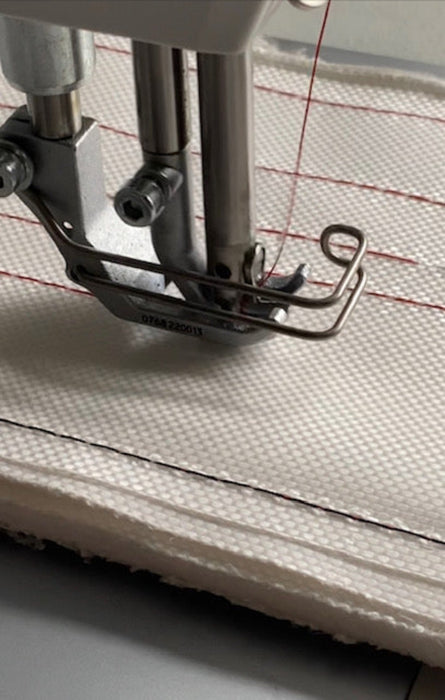

Sewing and simultaneous trimming of fabric edges in the field of home and car upholstery

Performance Features

• Max. Stitch Length 12 mm
• Max. Sewing Speed 3,000 Stitches/Min.

DAC Classic

The control “DAC classic” with the appertaining control panel OP1000 is especially adapted to the characteristics of the direct drive as well as to the large range of functions of the M-TYPE CLASSIC machines. This control leaves hardly anything to be desired with regard to functionality and ease of use.

The Advantages:

• Integrated direct drive with DAC classic control incl. operating panel OP1000
• Robust, switchable edge trimmer for the flexible use with and without trimming of the fabric edges
• Neat fabric edges in the prefabrication of padded upholstery parts
• Constant seam margins and congruent fabric edges in case of “narrow margins”
• Efficient working method by simultaneous sewing and trimming
• Large bobbin thread capacity due to XXL hook
• Equipment features corresponding to the M-TYPE CLASSIC version like thread trimmer, automatic backtacking, pneumatic sewing foot lift, integrated LED sewing lamp and maintenance indicator
• Sewing equipment for various trimming margins

	Flat bed machine with integrated DA direct drive
	1-needle
	Bottom feed, needle feed and alternating feet
	Hook to the left of the needle
	Edge trimmer
	Underbed thread trimmer & seam backtacking, automatic
	Control for 2 different feeding lengths
	Foot stroke adjustable by dial and, while sewing, by knee switch with similtaneous speed limitation according to the foot stroke and feeding length
	Integrated sewing light (LED)
	Operation panel OP1000
	Lockstitch

*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.
