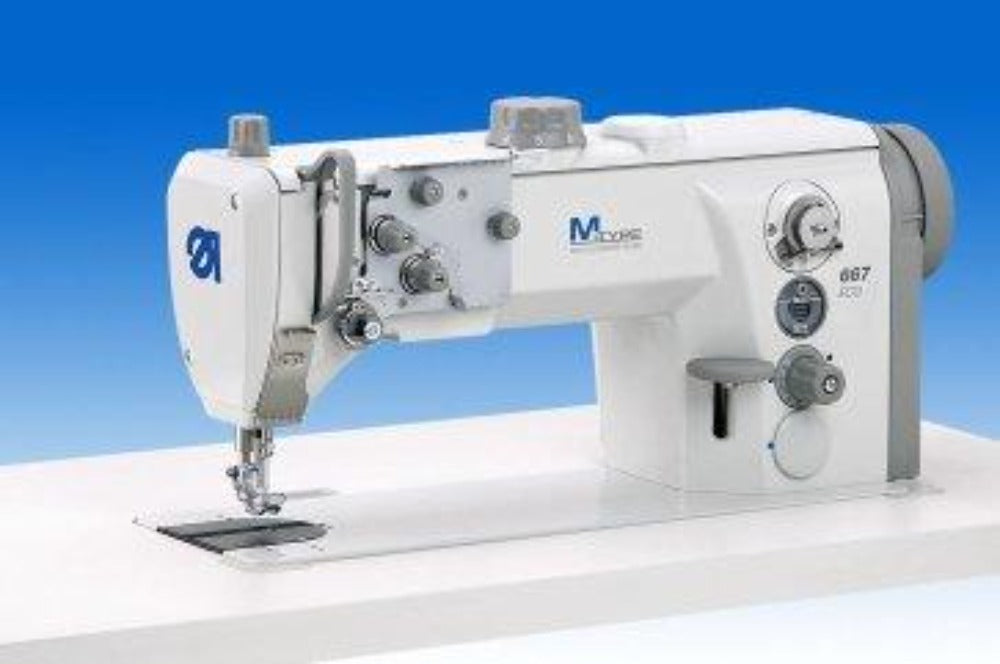

DURKOPP ADLER 667-180030 M-TYPE Lockstitch Flat Bed Machine With XXL Horizontal Hook In ECO-Version; Single Needle Lockstitch Flatbed Machine
Industrial Lockstitch Machine

DURKOPP ADLER 667-180030 M-TYPE Lockstitch Flat Bed Machine With XXL Horizontal Hook In ECO-Version; Single Needle Lockstitch Flatbed Machine

Availability: Out Stock
  • Vendor:DURKOPP ADLER
$5,549.00
Enquiry

DURKOPP ADLER 667-180030 M-TYPE lockstitch flat bed machine with XXL horizontal hook in ECO-version

 • XXL horizontal hook and sewing kinematics for high seam quality, secure and tight stitch formation with thread size up to max. Nm 10/3
• The large clearance (335 mm wide and 125 mm high) facilitates the handling of large-area workpieces
• Extremely high sewing foot lift
• The high top feed stroke allows a safe climbing over differently high material plies

Typical field of application
Universal sewing operations in the field of medium-heavy duty applications

Performance features
• Max. stitch length 9 mm
• Max. sewing speed 3,000 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 20 mm

Flatbed sewing machine
1-needle
Bottom feed, needle feed and alternating feet
Horizontal hook, extra large
Sewing foot lift, actuated by knee
Seam backtacking, actuated by hand
Foot stroke adjustable by dial
 Lockstitch
