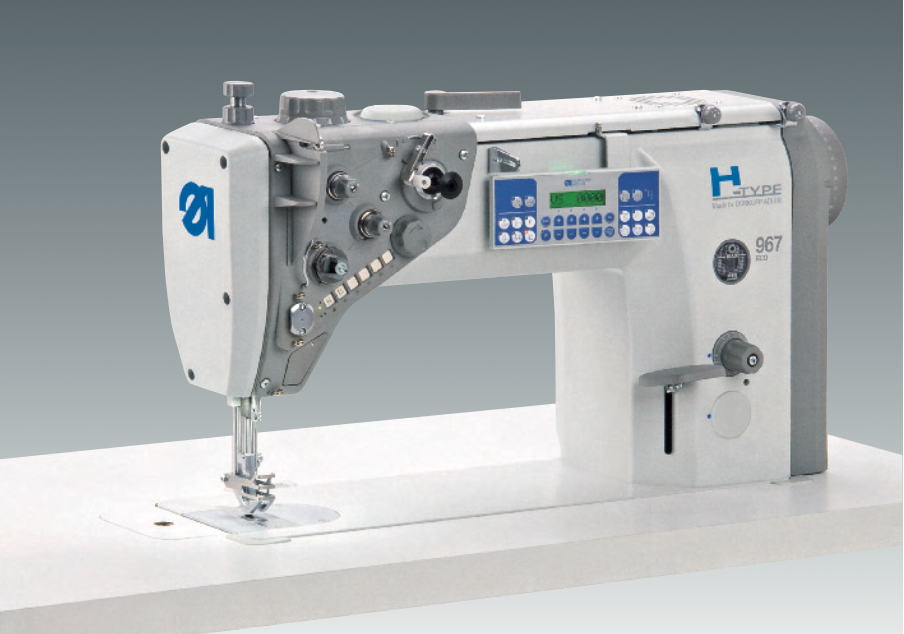

Duerkopp Adler H-TYPE 967-180100 CLASSIC: Sewing machine for extreme sewing applications

• Due to the continuously growing demands in the field of technical textiles with regard to extreme material thicknesses and thread sizes, the enormous performance parameters concerning stitch length, foot stroke and sewing speed as well as the simultaneously required maximum effectivity in modern production processes the sewing technology is confronted with new challenges.
• Dürkopp Adler has met these challenges and presents as a result a completely new designed machine generation – the H-TYPE series.
  With the H-TYPE Dürkopp Adler is setting new standards for productivity and efficiency in the world of “heavy-duty sewing applications”.
  With its robust construction, the outstanding performance parameters combined with automatic functions like thread trimmer and automatic backtracking, an innovative drive technology and modern design the flat bed machine H-TYPE class 967 CLASSIC is characterized by maximum penetration force and impressive sewing dynamics.

Max Stitch Lenght: 15 mm

Extremely High Presser Lift / Presser Foot Clearance: 30mm

Extreme Alternating Top Feed: up to 12 mm

Thread Size: Extremely Thick Sewing Thread

XL Barrel Shuttle Hooks

Class: 967-100180; Art. 0967 990001: Heavy single needle lockstitch machine with integrated sewing drive, bottom feed, needle feed and alternating feet, electropneumatic sewing foot lift.

Class: 967 E4/0-15; Art. 0967 Е00415: Sewing equipment, needle size Nm 160-280, max. stitch length 15 mm, contact patch of the feeding foot is non toothed

Class: RAP 15-8; Art. 0967 590014: Electropneumatic backtack

Class: 9880 967001; Art. 9880 967001: Integrated sewing light (LED)

Class: 9850 1089; Art. 967-100180 / E4: Sewing light transformer for dimmable LED sewing lights

Class: MG 58-3 09670010; Art. 967-100180: Stand kit as reinforced version, table top 1160 x 750 mm with 1 pedal

	Free Sewing Machine Training and Join Our Sewing Lessons and Sewing Classes to learn about the machines and project.
	365-day free consulting, in-house training and online support at SewingGuru.com.
	Trade-in options available and replace your old machines with upgrade program.
	Experience all the demo & display machine at our store - Bring your materials and test drive it.
	range of payment method supported - Cash, NETS, Cheque Credit/Debit Cards, Installment, Paypal and etc.
	Free In-house Training session for each of the products.
	Warranty and Servicing from Experience in-house Technicians.

Contents

Durkopp Adler 967-180100 Machine Features

Durkopp Adler 967-180100 Machine Highlights

Your advantages:

• Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 5/3
• The extremely large clearance (1000 mm wide and 225 mm high) facilitates the handling of large area workpieces
• Up to 15 mm long stitches for assembly and decorative seams
• The extremely high sewing foot lift up to 30 mm facilitates the feeding and removing of bulky workpieces
•  High productivity due to the XL barrel hook – 70% larger bobbin capacity in comparison to the standard hook
• The sewing foot stroke up to 12 mm allows the safe climbing over differently high material plies
• Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads
• Integrated 6-function keypad with ergonomically arranged favorite key
• Equipment features corresponding to the CLASSIC version like thread trimmer, electro pneumatic sewing foot lift, automatic backtracking, integrated LED sewing lamp and maintenance indicator
• Integrated, motor-driven bobbin winder with winding assistant
•  Integrated sewing drive for maximum penetration force
• DAC classic control with multifunctional control panel OP1000
• Electronical needle positioning („Jog-Dial”) with the functionality of an electronical hand wheel

• Max. sewing speed 1,000 stitches/min.

	Flat bed machine with built in motor
	Bottom feed, needle feed and alternating feet
	Barrel shuttle, extra large
	Sewing foot lift, automatic
	Thread trimmer & seam backtacking, automatic
	Foot stroke adjustable by dial and, while sewing, by knee switch with simultaneous speed limitation according to the foot stroke and feeding length
	Control for 2 different feeding lengths
	Thread nipper for a neat seam beginning
	Jog-Dial
	Integrated bobbin winder, motor driven
	Integrated sewing light (LED)
	Maintenance indicator
	Operation panel OP1000
	Lockstitch
