DURKOPP ADLER 967-100180 ECO - Extreme Heavy Duty applications; Single Needle Lockstitch Flatbed Machine; complete set with High Power Servo Motor.

Sold out
Original price $20,868.00 SGD - Original price $20,868.00 SGD
Original price
$20,868.00 SGD
$20,868.00 SGD - $20,868.00 SGD
Current price $20,868.00 SGD

DURKOPP ADLER 967-100180 ECO : Heavy Single Needle Lockstitch Flatbed Machine

  • DURKOPP ADLER 967 ECO - Heavy Single Needle Lockstitch Flatbed Machine Brochure
  • Durkopp Adler heavy single needle lockstitch flatbed machine with integrated sewing drive, bottom feed, needle feed and alternative feet.
  • electropneumatic sewing foot lift with integrated sewing drive inclusive DAC classic control box,
  • operational panel OP1000 and electronic needle positioning (Jog Dial),
  • with XL barrel shuttle,
  • motor driven bobbin winder,
  • adjustable sewing foot stroke up to 12mm, sewing foot lift in high needle position 30mm,
  • key combination for needle position high/low,
  • stitch length up to 15mm,
  • maximum sewing speed 1,000 stitches per minutes.

Extremely High Presser Lift / Presser Foot Clearance: 30mm

Extreme Alternating Top Feed: up to 12 mm

Thread Size: Extremely Thick Sewing Thread up to 5/3

Accessories:

967 E 1/0-15 - Sewing equipment, needle size Nm 140-200, max. stitch length 15 mm, For heavy weight material

N800 080041 - edge guide

WE-8 - Maintenance Unit

797 3031 - Pneumatic Package

MG58 400484 - Stand Kit as reinforced version, table top 1160 mm x 750 mm

ATTENTION: not assembled, with 1 pedal

967 990001 ZM - Assembly


Sewing Guru - Sewing classes and Product Design Sessions Free Sewing Machine Training and Join Our Sewing Lessons and Sewing Classes to learn about the machines and project.
Sewing Guru - 365-day Customer Support and online consulting 365-day free consulting, in-house training and online support at SewingGuru.com.
Sewing Guru - Trade-in options and replace machine Trade-in options available and replace your old machines with upgrade program.
Sewing Guru - Experience wide range of demo products Experience all the demo & display machine at our store - Bring your materials and test drive it.
Sewing Guru - Flexible Payment Methods range of payment method supported - Cash, NETS, Cheque Credit/Debit Cards, Installment, Paypal and etc.
Sewing Guru - Home Training Session Free In-house Training session for each of the products.
Sewing Guru - Product Warranty Warranty and Servicing from Experience in-house Technicians.

Contents


åÊ

Durkopp Adler 967-100180 ECO Machine Features

967 E1/0-12 :

Sewing Equipment, Needle Size NM140-200, Max Stitch Length 12mm for Heavy Weight Material.

N800 80041:

Combined Roller and Straight Guide, Right, Hinged, Height Adjustable, Adjustment Range : 0 - 42mm.

9880 967001 :

Integrated Sewing Light (LED) Circuit Board with 2 Integrated White LED's and Mounting Frame, to be fitted to the underside of the Sewing Head

9850-1089:

Sewing Light Transformer for Dimmable LED Sewing Lights. Primary Voltage 230V, Secondary 24V

Maintenance Unit for Pneumatic Optional Equipment.
797 3031 :

Pneumatic Connection Package. Complete with 5m Hose and All Necessary Fittings.

MG 58-3 09670010

Stand Kit as Reinforced Version, Table Top 1160 x 750mm with 1 Pedal

  • Complete Set
  • Due to the continuously growing demands in the field of technical textiles with regard to extreme material thicknesses and thread sizes, the enormous performance parameters concerning stitch length, foot stroke and sewing speed as well as the simultaneously required maximum effectivity in modern production processes the sewing technology is confronted with new challenges.
  • Duerkopp adler has met these challenges and presents as a result a completely new designed machine generation with the H-TYPE series.
  • With the H-TYPE DÌ_rkopp Adler is setting new standards for productivity and efficiency in the world of heavy-duty sewing applications
  • With its robust construction, the outstanding performance parameters, an innovative drive technology and modern design the flat bed machine H-TYPE class 967 ECO is characterized by maximum penetration force and impressive sewing dynamics.



Durkopp Adler 967-100180 ECO Machine Highlights

Your advantages:

  • Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 5/3
  • The large clearance (420 mm wide and 225 mm high) facilitates the handling of large area workpieces
  • Up to 15 mm long stitches for assembly and decorative seams
  • Electropneumatic sewing foot lift as standard equipment
  • The extremely high sewing foot lift up to 30 mm facilitates the feeding and removing of bulky workpieces

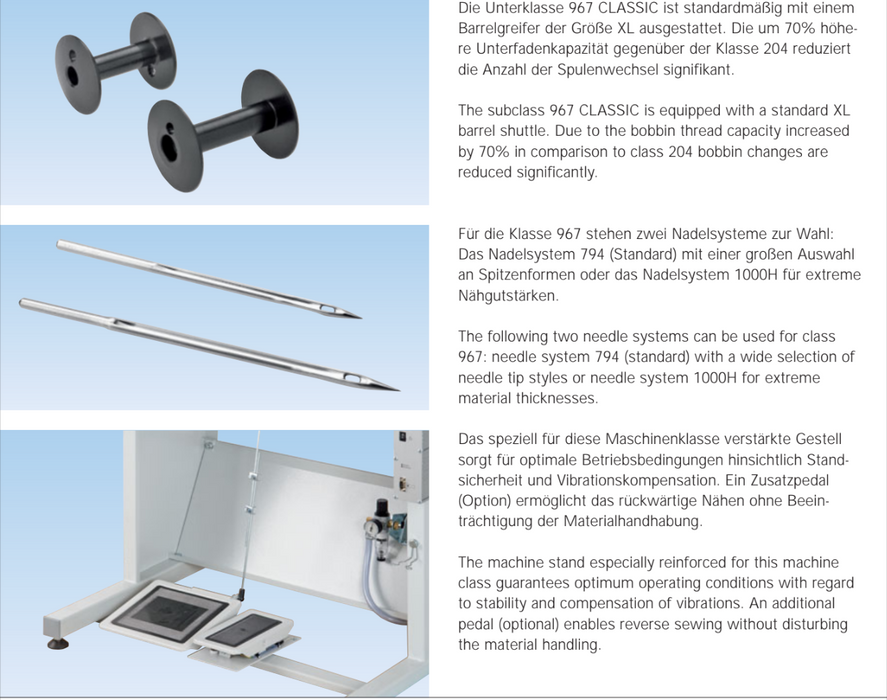

  • High productivity due to the XL barrel hook 70% larger bobbin capacity in comparison to the standard hook
  • The sewing foot stroke up to 12 mm allows the safe climbing over differently high material plies
  • Integrated 6-function keypad with ergonomically arranged favorite key
  • Integrated, motor-driven bobbin winder with winding assistant
  • Integrated sewing drive for maximum penetration force
  • DAC classic control with multifunctional control panel OP1000
  • Electronical needle positioning ("Jog-Dial") with the functionality of an electronically hand wheel (optional equipment)
  • Max. sewing speed 1,000 stitches/minutes
