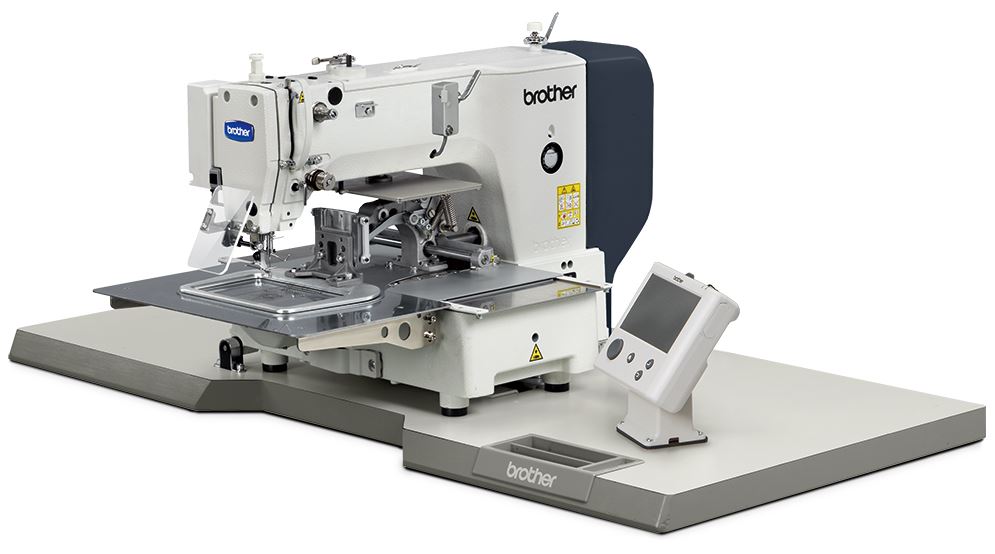

Brother BAS-326H Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

The Brother BAS-326H is a high-performance direct-drive programmable electronic pattern sewing machine with a cylinder bed, engineered to deliver exceptional sewing quality, accuracy, and productivity. Designed for demanding industrial applications, it is suitable for sewing woven fabrics, denim, knitted materials, leather goods, footwear, automotive components, bags, and technical textiles.

	Free sewing machine training and access to sewing lessons to help you maximise your machine's capabilities.
	365-day customer consultation, in-house training, and online technical support.
	Trade in your existing sewing machine and upgrade through our trade-in programme.
	Visit our showroom to test the machine using your own materials before purchasing.
	Multiple payment options available including Cash, NETS, Credit/Debit Cards, Instalments, PayPal, and more.
	Complimentary in-house training included with every machine purchase.
	Warranty coverage and servicing provided by our experienced in-house technicians.

Key Features

• Direct-drive programmable electronic pattern sewing machine with cylinder bed.
• Designed for exceptional stitch quality and high production efficiency.
• Suitable for woven fabrics, denim, knitted materials, leather, footwear, and technical textiles.
• Maximum sewing area: 220 × 100 mm.
• Adjustable stitch length: 0.05 – 12.7 mm.
• Maximum sewing speed: 2,800 stitches per minute (SPM).
• Maximum stitches per program: 20,000 stitches.
• Digital Thread Tension and Thread Breakage Detection included as standard.
• IoT-ready for production monitoring and factory automation.

World-Class Sewing Speed with Superior Stitch Quality

The BAS-326H features a highly rigid feed mechanism capable of sewing at speeds of up to 2,800 stitches per minute. Its precise needle positioning and stable thread control produce consistently high-quality stitching, even during continuous industrial production.

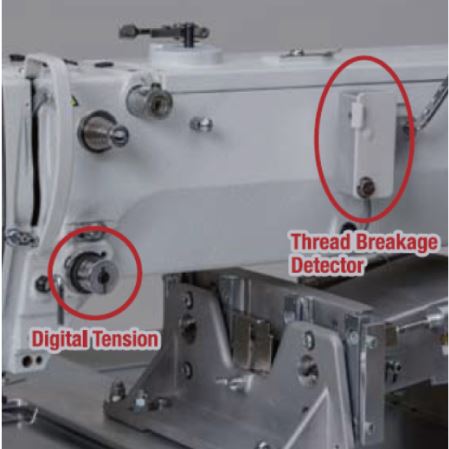

Digital Thread Tension & Thread Breakage Detection

The integrated Digital Thread Tension System electronically controls upper thread tension, ensuring consistent stitch quality across a wide range of materials while eliminating manual adjustments.

The built-in Thread Breakage Detection System automatically stops the machine and alerts the operator whenever a thread break occurs, helping minimise defects and improve production efficiency.

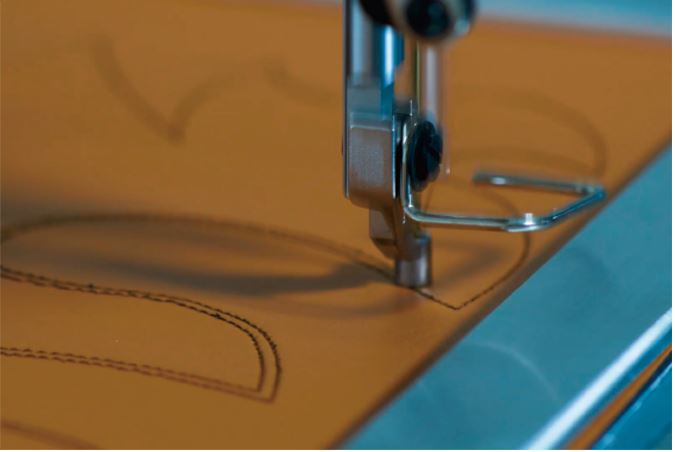

Excellent Needle Penetration

Powered by a 550W direct-drive motor, the BAS-326H delivers outstanding torque even at low sewing speeds. The intelligent vibration control system automatically increases needle penetration force when sewing thick or resistant materials.

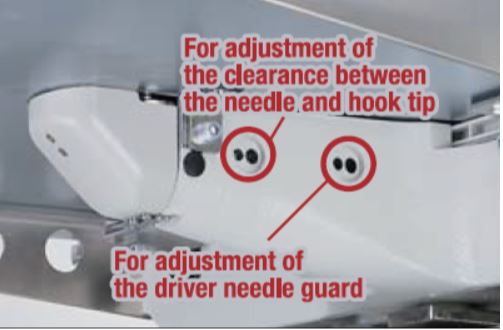

Quick Machine Adjustment

Machine adjustments can be conveniently performed from the side without tilting the machine head, reducing downtime and improving productivity during material changes.

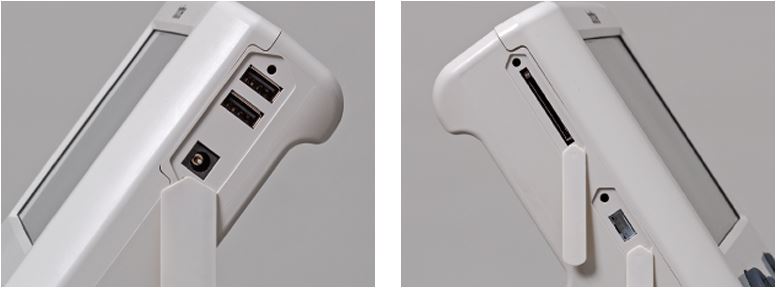

Multimedia Connectivity

The BAS-326H supports multiple methods for transferring sewing data:

• 1 × SD Card Slot
• 2 × USB Ports
• Expansion Port for additional peripherals

PS-300B Sewing Data Programming Software

• Create and edit sewing patterns directly on a computer.
• Quickly resize and modify existing sewing patterns.
• Compatible with previous Brother sewing pattern files and external data.

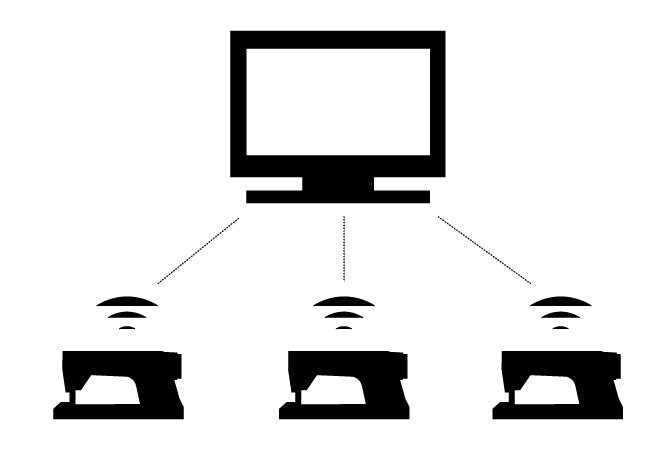

IoT-Ready Smart Factory Integration

As part of Brother's NEXIO series, the BAS-326H supports IoT connectivity for modern manufacturing environments. By connecting machines to production management software, businesses can monitor performance, analyse productivity, optimise workflows, and simplify preventive maintenance.
