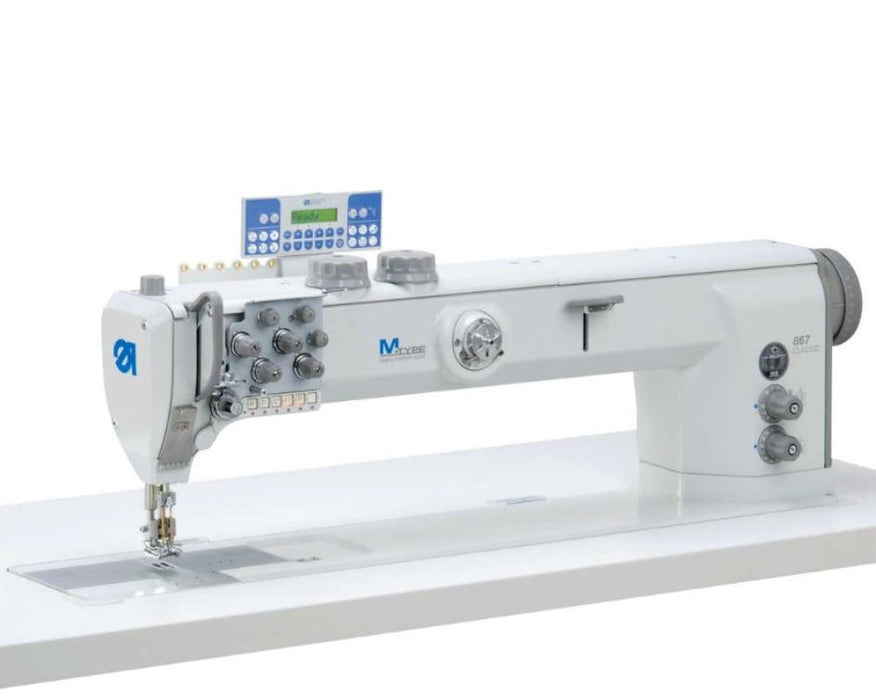

DURKOPP ADLER 867-190040-70, M type, ECO With XXL-Hook

ECO and CLASSIC describes clearly defined level of functionality and upgradability of all machines out of the M-TYPE platform. ECO stands for perfect seam results, low maintenance construction and a modern design without automatic functions like thread trimming, sewing foot lift, back tack, etc.

 

• The extremely high sewing foot lift up to 20 mm clearance facilitates the feeding and removing of bulky workpieces
• Integrated direct drive with DAC eco M-TYPE control
• The powerful and effective feeding system with bottom feed, needle feed and alternating top feed guarantees trouble-free and displacement-free material feed
• The high top feed stroke up to 9 mm allows a safe climbing over differently high material plies
• Large bed space of 335 mm wide and 125 mm high
• Excellent view on the sewing area
• Increased productivity due to the XXL hook (70% larger bobbin capacity in comparison to the standard hook)
• Complete range of sewing equipment, attachments and optional equipment, i.e. optimum equipment for nearly all sewing operations

Typical Field of Application

Universal sewing operations in the field of medium-heavy duty applications

Performance Features

• Max. stitch length 12 mm
• 10mm max workpiece thickness; whereas (H867: 15mm workpiece thickness)
• 20mm presser foot clearance; whereas (H867: 25mm clearance)
• Max. sewing speed 3,400 stitches/min.(H867: 1800 stitch/min)
• Up to Size 10/3 Fine Quality Polyester or Nylon Threads (H867: 8/3 threads size)
• Max. Throat width (Needle point to Body casting) : 13 1/4 inches or 13.2 inches.

DAC Eco M-TYPE

The control „DAC eco M-TYPE“ has been specially designed for the M-TYPE ECO machines with DA direct drive and is integrated into the casing of the direct drive – nearly invisible for the user.

The Advantages:

• DAC eco M-TYPE control with convenient basic functions like needle positioning, soft start, and realization of a pedal-operated single stitch
• Programmable parameters like maximum sewing speed, soft start speed, and number of soft start stitches
• Machine identification system for the management of machine-specific parameters
• The control is completely integrated into the machine casing. No further installation work is required when putting the machine into operation (Plug and Play)

	Flat bed machine with integrated DA direct drive
	1-needle
	Bottom feed, needle feed and alternating feet
	Vertical hook, extra large
	Stitch length 12mm
	Sewing foot lift, actuated by knee
	Foot stroke adjustable by dial
	Seam backtacking, actuated by hand
	Lockstitch

*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.
