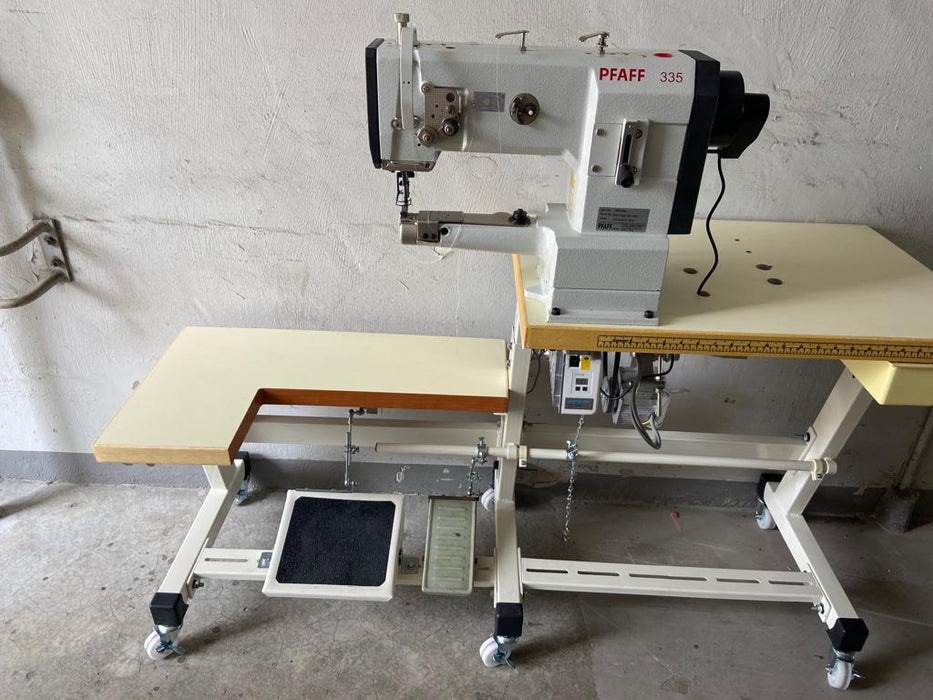

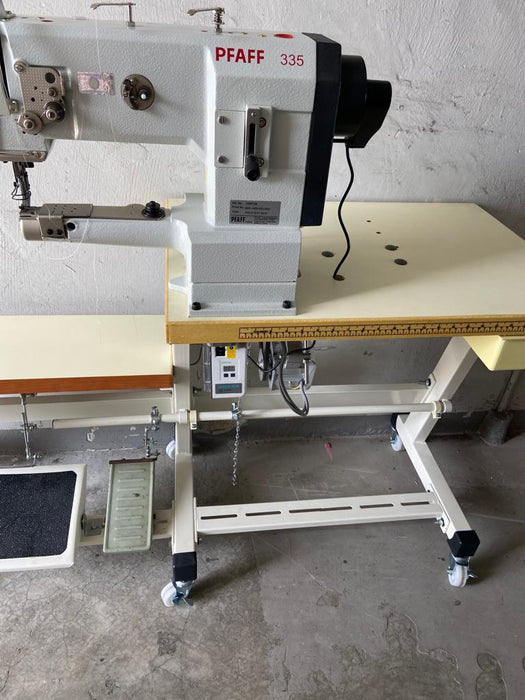

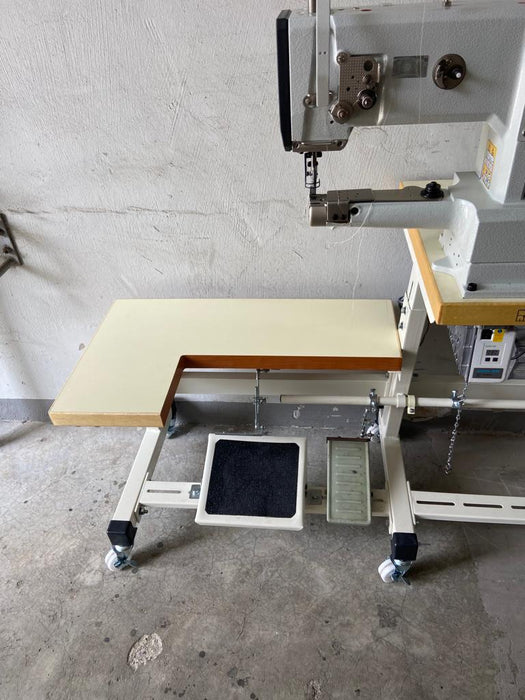

PFAFF 335 Series: 335 Hi-Low Table & Stand

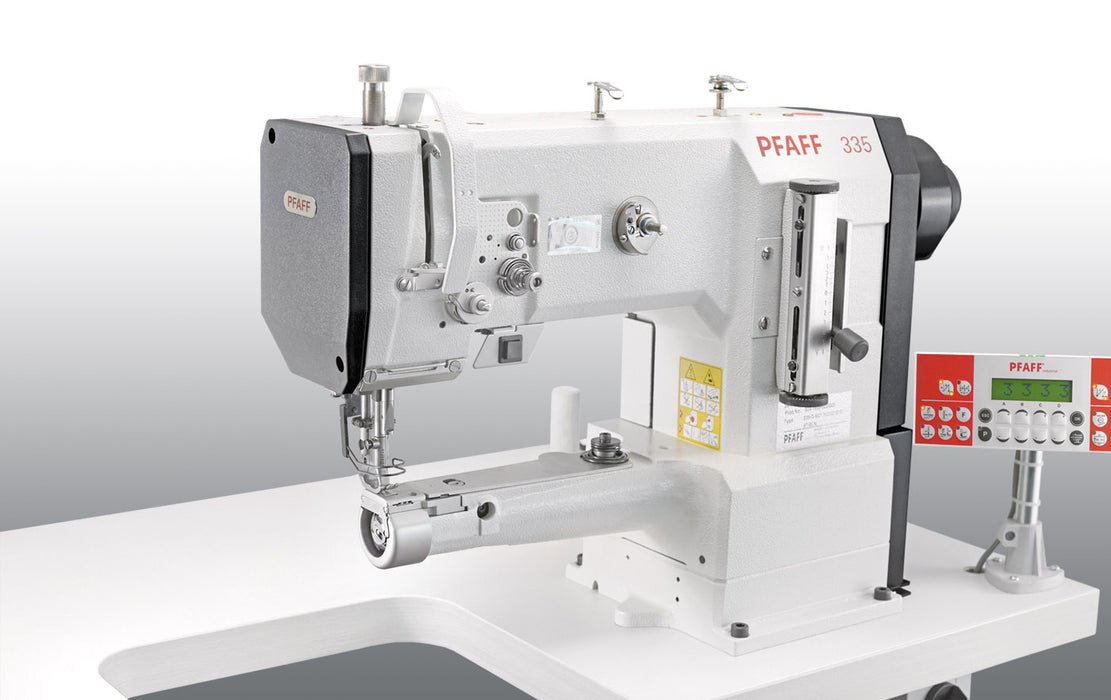

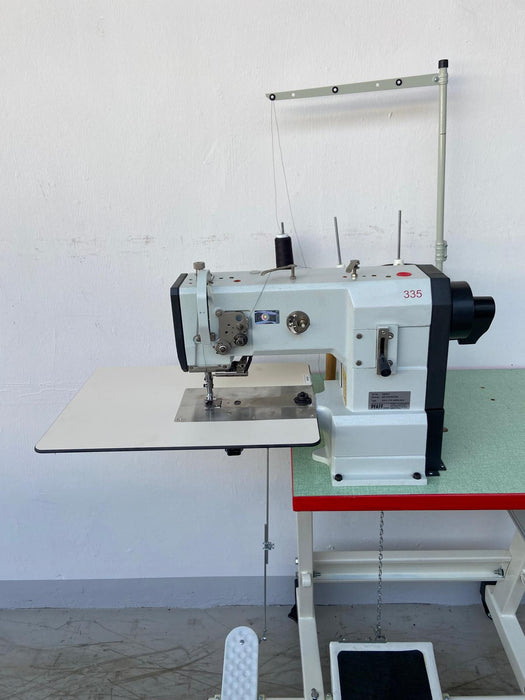

PFAFF 335 Series - Industrial Single Needle Lockstitch Cylinder Bed Machine (Unison Feed) (Cylinder Arm)

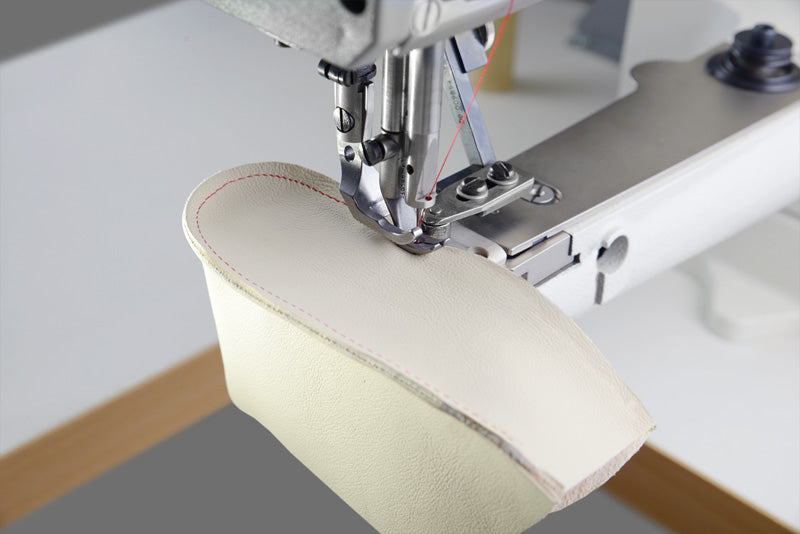

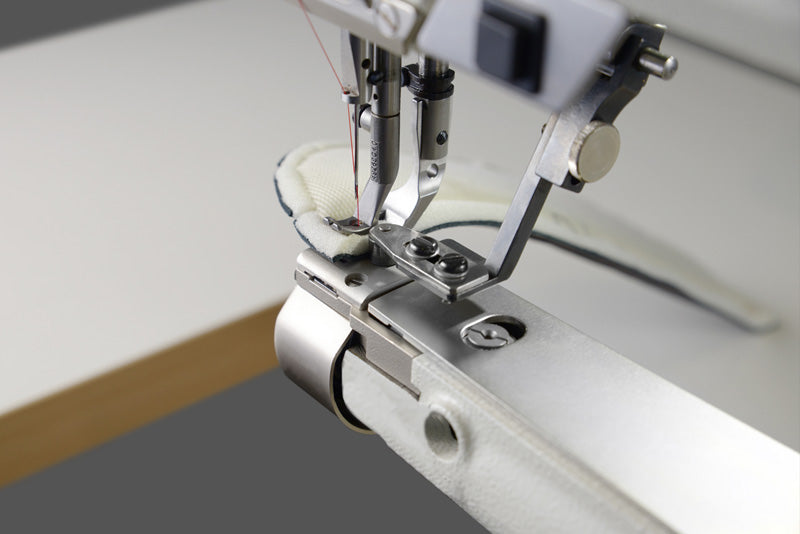

The PFAFF 335 is a universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leatherwear, bags and leather craft articles.

Applications

Universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leather craft articles.

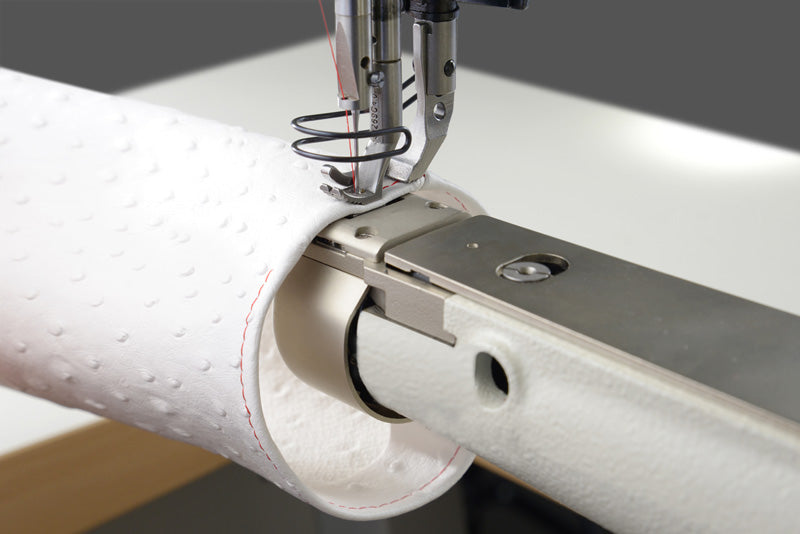

  • Cylinder-bed machine for working on tubular or pre-attached articles
  • Very good feeding properties due to the unison feed
  • Excellent sewing quality with high performance and sewing reliability
  • Precise and consistent stitch setting at large spectrum of materials/fabrics
  • Fewer bobbin changes due to the large hook (40% more bobbin capacity than standard hook)
  • Rugged and durable machine construction - Easy to maintain machine concept
  • The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
  • Easy loading and unloading even of bulky material due to a high fabric clearance of 14 mm
  • Distance of the front edge of the cylinder arm to the needle: 9 mm - Cylinder arm diameter: 51 mm
  • Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy.


Needle System: 134-35 LR
Needle Size: 80 - 100 Nm
Max. Sewing Speed: 2.800 s.p.m
Max. Stitch Kength: 6,0 mm
Top Feed Stroke: 7,0 mm
Stitch Type: 301 (Lockstitch)
Thread Type: Synth. 40/3
Clearance under the Sewing Foot: Max. 14,0 mm
Connection Voltage: Single-Phase A.C. 230 V, 50/60 Hz


*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.

Options
  • Backtacking System
  • Thread Trimmer
  • Automatic Presser Foot Lift


Download PFAFF 335-G-2/27 BLN Brochure

Download PFAFF 335-G-2/27 BLN Shoe Segment Brochure

Download PFAFF 335-G-2/27 BLN Manual
