3 Point Feed, Single Needle Lockstitch; Upholstery & Technical fabrics stitching

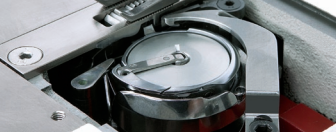

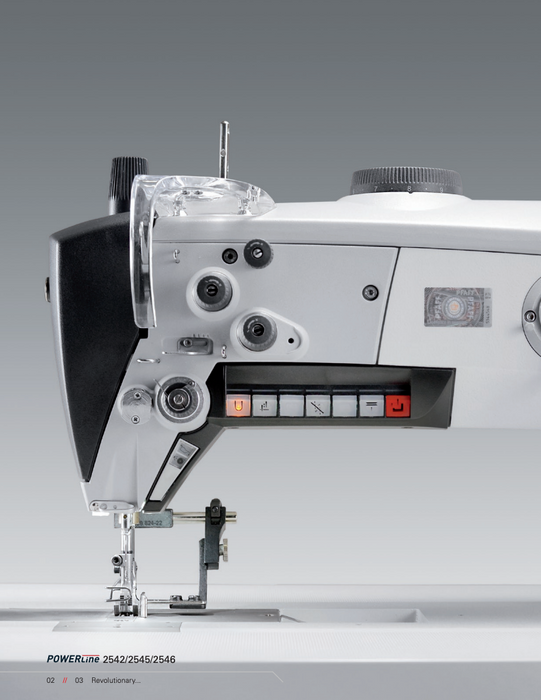

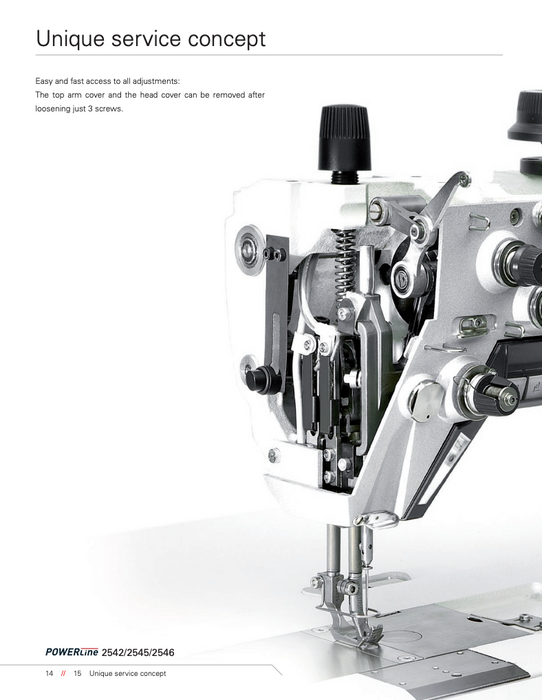

The combination of revolutionary design and innovative engineering has led to the development of something quite special, extraordinary – something, which will influence the future of the sewing machine. An impressive example for such a far reaching combination is the POWERLINE 2545 – a line of machines, which represents a new generation of special high-speed sewing machines with triple feed (bottom, needle and alternating top feed) and vertical hook. The machine achieves a very high stitch quality both for top-stitching work in the visible areas and for securing and assembly seams The ergonomically designed dials guarantee quick and accurate adjustments of the top feed stroke Large clearance under machine arm (345.0 x 120.0 mm) Bobbin winder for a secure and fast start of the winding process („winding assistant“) Easy and fast access to all adjustments: The top arm cover and the head cover can be removed after loosening just 3 screws Overload safety clutch. Applications Universal sewing operations in the field of medium-heavy duty applications Specifications Needle system: 134-35 Needle size: C 110 - 140 Nm, D 150 - 200 Nm Max. sewing speeds: 3.800 s.p.m Max. stitch length: 12,0 mm Max.Top feed stroke: 9,0 mm Max. Thread thickness: C 15/3, D 8/3 Stitch type: 301 (Lockstitch) Clearance under the sewing foot: max. 20,0 mm Clear workspace: 345 x 120 mm Connection voltage: single-phase a.c. 230 V, 50/60 Hz
