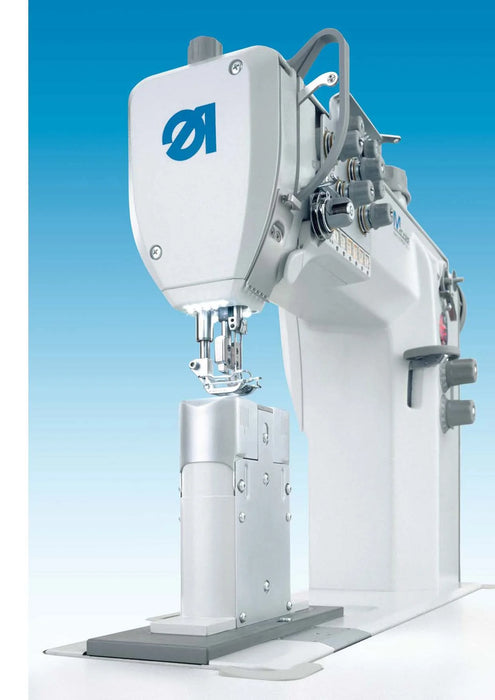

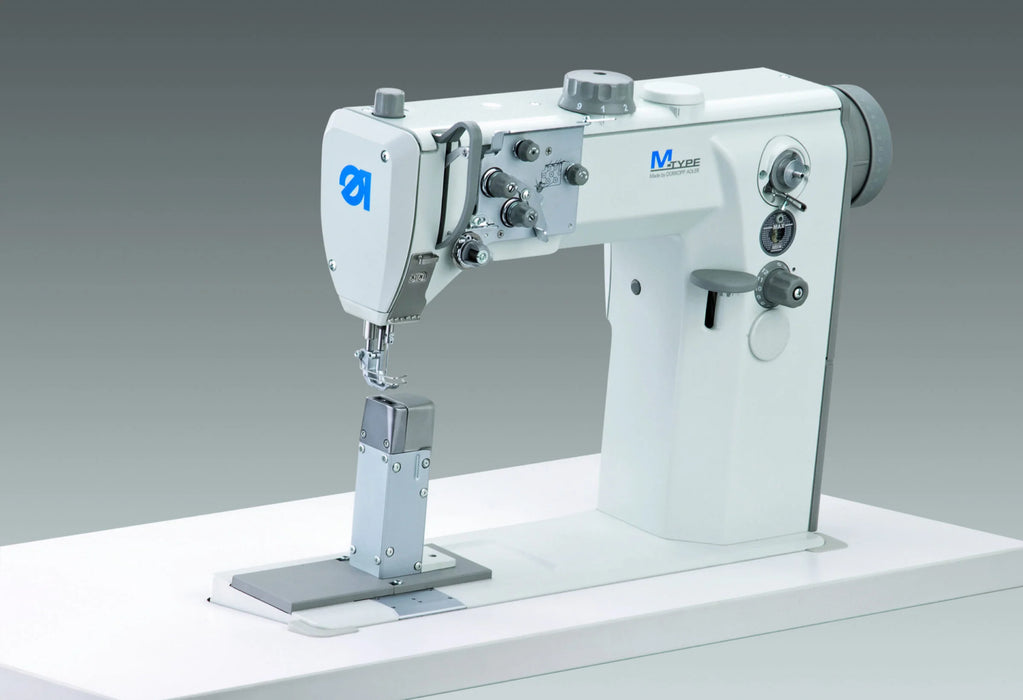

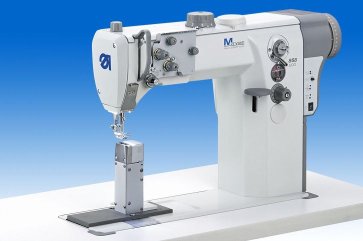

DA868‑190020-M is a high‑performance industrial post‑bed lockstitch machine designed for decorative and functional seams on medium to heavy materials. It features a triple feed system (bottom, needle, and alternating presser feet), integrated direct‑drive motor, and large vertical hook for heavy threads. Ideal for automotive upholstery, leather goods, and furniture production.
DA868-190020-M / E3: Single needle lockstitch post bed machine (right post) with DA Direct Drive, bottom feed, needle feed and alternating feet with integrated sewing drive incl. integrated DAC eco+ M- TYPE control, with large vertical two piece hook, safety clutch, adjustable sewing foot stroke up to 9 mm, sewing foot lift in high needle position 20 mm, stitch length up to 12 mm, max. sewing speed 2.500 stitches/min.
Highlights
- 1‑needle lockstitch, post‑bed design
- Triple feed: bottom + needle + alternating feet
- Long stitch length up to 12 mm
- Max speed: 2,500 stitches/min
- Integrated direct‑drive motor with DAC eco control
- Presser foot lift up to 20 mm, alternating foot stroke up to 9 mm
- Large vertical hook with large bobbin for heavy threads
- Needle system 134‑35 (sizes Nm 90–180)
- Thread size support up to Nm 10/3
- Integrated LED lighting (on selected models)
