1591 & 591-940/02 BL N5 / N7 - PFAFF Single Needle Right Hand Industrial Post-Bed Machine with Wheel Feed, Needle Feed and Driven Roller Presser (Suitable for Sport-Wear, Classic, Lady)

• PFAFF 1591
• PFAFF 591- 940/02 Industrial Post-Bed Machine
• Single-needle post-bed high-speed machine with wheel feed, driven roller presser, needle feed and edge trimmer (right post bed) - the specialist for close to- the-edge sewing operations and narrow radii.
• Suitable for Sport-wear, Classic, Lady fine finishes.

Modern Post-Bed High-Speed Machine Series - Mechanical Design


Single and double-needle post bed machines with the PFAFF INDUSTRIAL brand are the most-used equipment in the shoe industry. PFAFF has succeeded in achieving a true upgrade of this legendary machine generation with the new series 571 / 574 / 591. The modern and new designed case in the new PFAFF product lead design, the sturdy thread trimmer as well as the automatic hook lubrication are the distinguishing features of this new product range. The machines are equipped with integrated, energy saving drives.

This range is mostly used for nearly all top-stitching work with single or two needles in the shoe production. Ornamental and assembly seams on classic and sport shoes can be sewn easily and in a top seam quality. The whole range of light to medium-heavy materials is covered here. The machines guarantee maximum performance and quality at an extremely attractive price – reason enough for many well-known manufacturers to use PFAFF post bed machines for their production.

Applications

Assembly and topstitching seams in shoes, leather goods and automotive interior.

Features

• New design of this classic PFAFF machine for the shoe industry

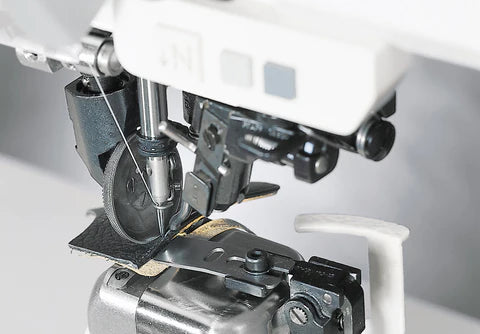

• Three roller presser versions available: cross toothed, rubber coated, straight toothed
• Top-quality for all decorative and securing seams

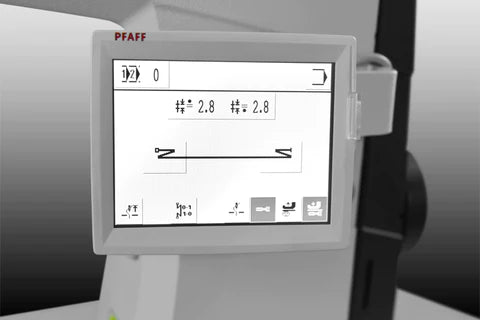

• Simple adjustment to number of backstack stitches via control panel
• "Stitch in stitch" backtacking ‚Äì no perforation of material
• Easily adjustable thread trimmer for short thread ends (up to 15/3 syn.)
• Overload clutch for hook protection

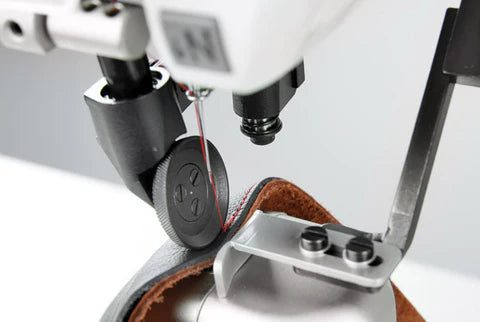

• Edge guide for an accurate and consistent seam distance to the edge
• A multi-function switch with pre-programmed functions is integrated in the sewing head - Reverse sewing / intermediate tacking, Backtack inversion, Needle up, without trimming
• Seam length programming by control panel
• Electromagnetic controlled functions for thread trimming and presser foot lifting (option)
• -725/04: Edge trimming mechanism, bottom driven (option)
• The LED light, which is built into the sewing head, creates optimum illumination of the sewing area
• No compressed air required
• Hand wheel within easy reach of the operator

Options

• Backtacking system
• Thread trimmer
• Automatic presser foot lift

Needle System: 134 PCL
Needle Size: Version B 90 Nm, Version C 130 Nm
Max. Sewing Speeds: B 3.000 s.p.m / C 2.000 s.p.m
Max. Stitch Length: B 5,0mm / C 7,0mm
Stitch Type: 301 (Lochstitch)
Clearance Under Roller Presser: Max. 7,0 mm
Diameter of Roller Presser: 30 mm ( Standard), 25 mm (Optional) - only on 570/590 machines
Clear Workspace: 245mm x 275 mm
Connection Voltage: Single-Phase A.C. 230 V, 50/60 Hz

Packing:

Servo Motor - 380mm x 270mm x 320mm | 10kg
Head - 760mm x 350mm x 660mm | 36kg
Table - 1090mm x 590mm x 60mm | 22kg
Stand - 50mm x 660mm x 260mm | 26kg

Computer-Aided Options:

• PFAFF 591-900/83-910/17-911/50 CL N7 (25mm Roller)
- Single needle postbed lockstitch machine equipped with automatic thread trimmer, auto foot lift, auto backtack with

MOTOR PFAFF P40 CD including panel

• TABLE 570/590-900-MD4 (1070mm x 540mm x 40mm) including Tilt-Base
• STAND PF-PF-925 (2 Holes Drilled, 6.5mm X 02mm)

*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.
