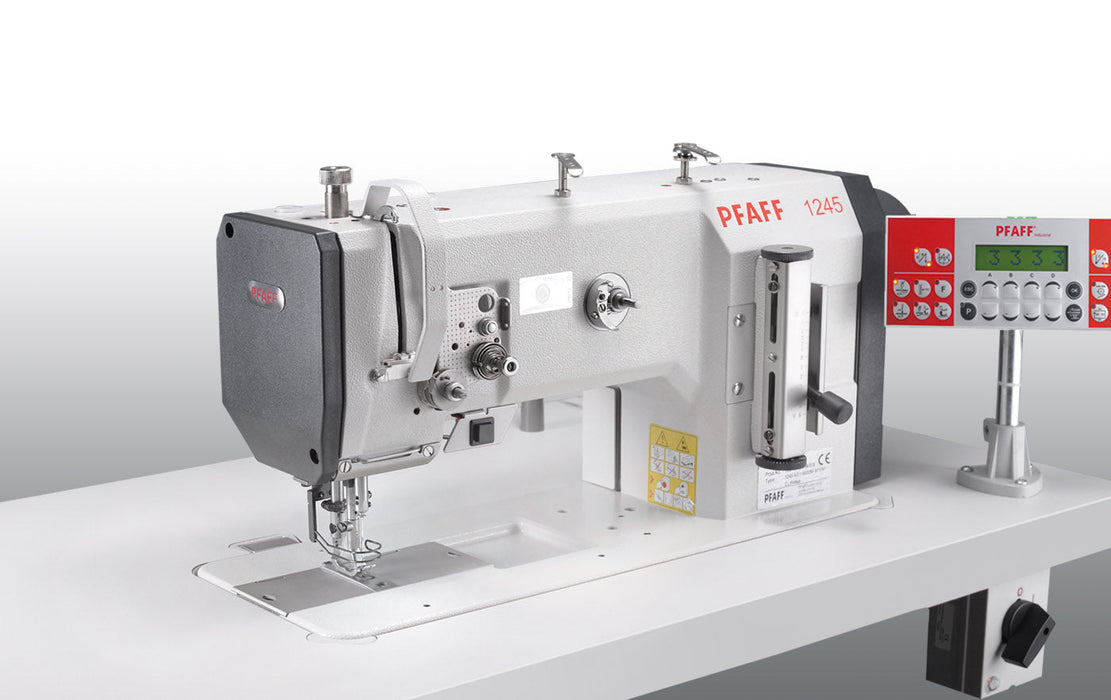

PFAFF 1245-6/01 CLPMN8 - Industrial Single Needle Heavy Duty Flat-Bed Lockstitch Machine Machine + Servo Motor Drive

PFAFF 1245-6/01 CLPMN8 - Industrial Single Needle Heavy Duty Flat-Bed Lockstitch Machine Machine + Servo Motor Drive

$3,388.00 SGD - $3,588.00 SGD
$3,388.00 SGD
$3,388.00 SGD - $3,588.00 SGD
$3,388.00 SGD
Style: Machine + Servo Motor Drive

PFAFF 1245-6/01 CLPMN8 - Industrial Single Needle Heavy Duty Flat-bed Lockstitch Machine (Unison Feed & Large Vertical Hook)

  • Single-needle, lockstitch flatbed sewing machines with large vertical hook (Unison feed)
  • Unison Feed
  • Large Vertical Hook
  • For Medium to Heavy Materials (C)
  • Needle Size #110-140
  • Overload Clutch for Protection of Hook (M)
  • Four-motion Drop Feed Version (P)
  • Max. Stitch Length 8mm (N8)
  • Max. Throat Width 10.6 inches or 270mm
  • I90M-4-BR220 750W Motor
  • Table Top & Iron Stand
  • Complete Set
  • High traction due to unison feed
  • Even feed motion without any ply-shift of individual layers
  • Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks (capacity with 40/3 threads: 50 m)
  • Automatic hook lubrication
  • Efficient hook protection against thread jamming due to standard built-in overload coupling (M)
  • Rugged and durable machine construction
  • The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
  • Easy to service
  • Easy loading and unloading even of bulky material due to a high fabric clearance of 14 mm
  • Attachment and extras for many further operations comprise, e.g. Welting operations or binding operations
  • D Version for extreme heavy fabric (only PFAFF 1245)
  • Also available as twin needle machine (PFAFF 1246)
  • Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy
Applications

Sewing of medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.

  • Needle System: 134-35 LR
  • Needle Size: 110 - 150 Nm
  • Max. Sewing Speeds: 2.800 s.p.m
  • Max. Stitch Length: 8,0 mm
  • Stitch Type: 301 (Lockstitch)
  • Clearance Under The Sewing Foot: Max. 14,0 mm
  • Clear Workspace: 270 x 115 mm
  • Connection Voltage: Single-Phase a.c. 230 V, 50/60 Hz
*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.

Options
  • Thread trimmer
  • Backtacking system
  • Automatic presser foot lift
Download PFAFF 1245-6/01 CLPMN8 Industrial Lockstitch Machine Partlist


Download PFAFF 1245-6/01 CLPMN8 Industrial Lockstitch Machine Brochure

Download PFAFF 1245-6/01 CLPMN8 Industrial Lockstitch Machine Instruction Manual

Download PFAFF 1245-6/01 CLPMN8 Industrial Lockstitch Machine Adjustment Manual
