Powerline 2545; PFAFF Unison Feed, Single Needle Lockstitch; Upholstery & Technical fabrics stitching
The combination of revolutionary design and innovative engineering has led to the development of something quite special, extraordinary – something, which will influence the future of the sewing machine.

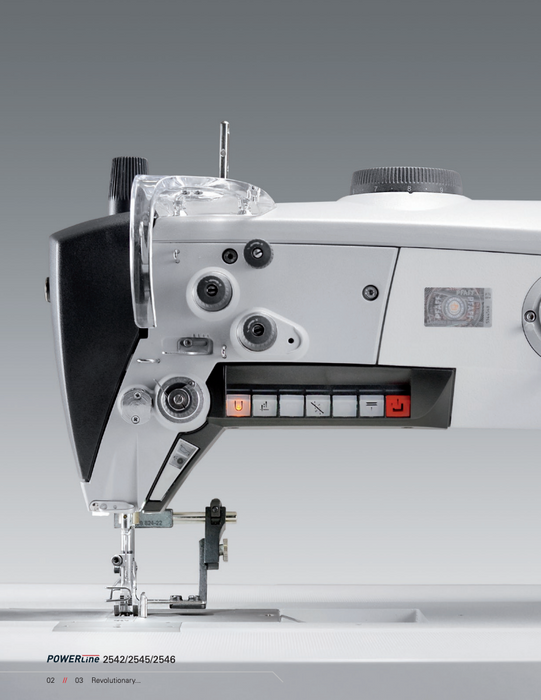

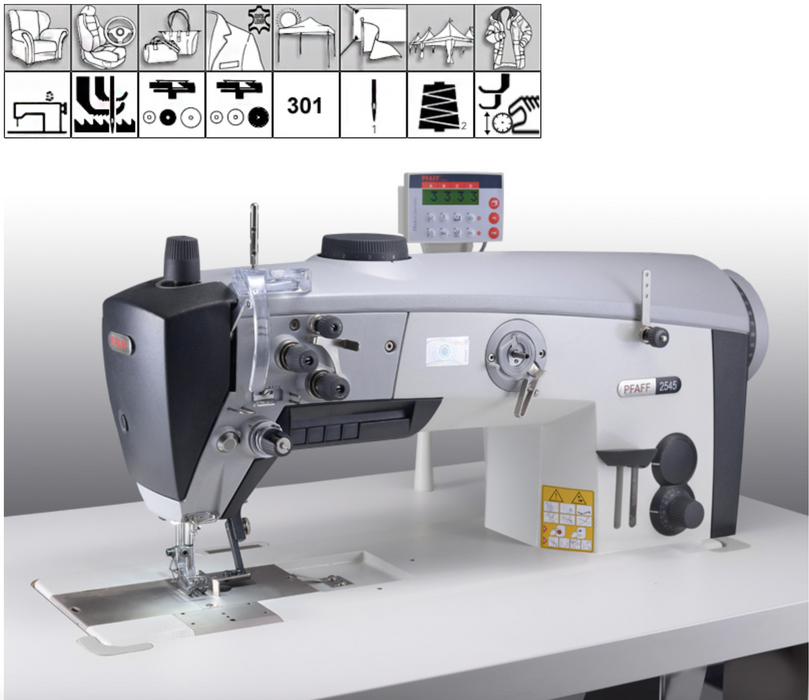

An impressive example of such a far-reaching combination is the POWERLINE 2545 – a line of machines, that represents a new generation of special high-speed sewing machines with triple feed (bottom, needle, and alternating top feed) and vertical hook.

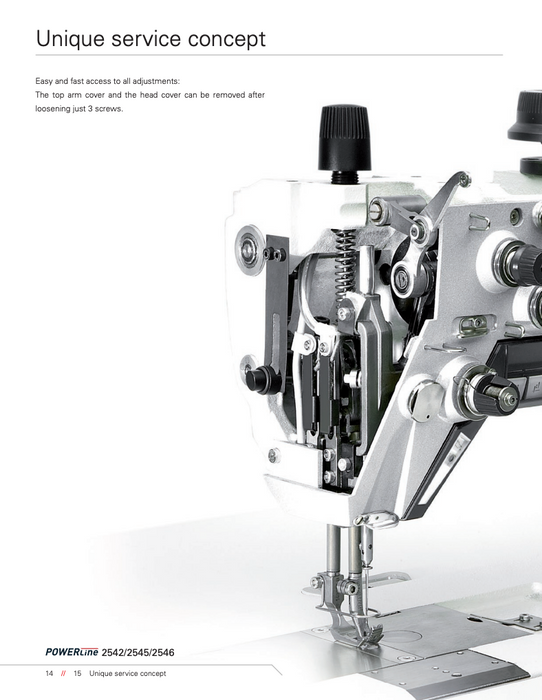

The machine achieves a very high stitch quality both for top-stitching work in the visible areas and for securing and assembly seams The ergonomically designed dials guarantee quick and accurate adjustments of the top feed stroke Large clearance under the machine arm (345.0 x 120.0 mm) Bobbin winder for a secure and fast start of the winding process („winding assistant“) Easy and fast access to all adjustments: The top arm cover and the head cover can be removed after loosening just 3 screws Overload safety clutch. Applications Universal sewing operations in the field of medium to heavy duty applications
Specifications Needle system: 134-35
Needle size: C 110 - 140 Nm, D 150 - 200 Nm Max.
Sewing speeds: 3.800 s.p.m Max.
Stitch length: 12,0 mm Max. Top feed stroke: 9,0 mm Max.
Thread thickness: C 15/3, D 8/3 Stitch type: 301 (Lockstitch)
Clearance under the sewing foot: max. 20,0 mm
Clear workspace: 345 x 120 mm Connection voltage:
single-phase a.c. 230 V, 50/60 Hz
2545 BASIC
equipped with: Large vertical hook for threads up to 10/3 • Top feed stroke up to 9 mm, presser foot lift: up to 20 mm, stitch length up to 12.0 mm • Max. sewing speed 3,800 stitches/min. • Overload safety clutch.

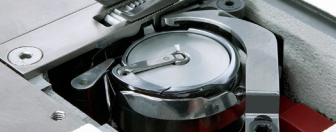

2545-G BASIC equipped with: Extra large vertical hook with 70% more thread capacity, for threads up to 10/3 (G). Top feed stroke up to 9 mm, presser foot lift up to 20 mm, stitch length up to 12.0 mm ; Max. sewing speed 3,400 stitches/min. ; Overload safety clutch.
2545 CLASSIC equipped with: -900/81: Thread trimmer &-909/12: Thread nipper, controlled &-910/04: Automatic presser foot lift &-911/35: Automatic backtacking device &-925/03: Air filter lubricator.
Large vertical hook for threads up to 10/3. Second thread tension electro-pneumatically controlled ; Adjustable top feed stroke up to 9 mm without quick change stepping control with automatic speed setting ; Presser foot lift up to 20 mm, 1 stitch length up to 12.0 mm ; Max. sewing speed 3,800 stitches/min. ; DC motor PFAFF P74 ED-L ; Overload safety clutch ; Built in LED sewing light in the machine head.
2545-G CLASSIC equipped with: -900/81: Thread trimmer &-909/12: Thread nipper, controlled &-910/04: Automatic presser foot lift &-911/35: Automatic backtacking device &-925/03: Air filter lubricator.
Large vertical hook for threads up to 10/3. Second thread tension electro-pneumatically controlled ; Adjustable top feed stroke up to 9 mm without quick change stepping control with automatic speed setting ; Presser foot lift up to 20 mm, 1 stitch length up to 12.0 mm ; Max. sewing speed 3,800 stitches/min. ; DC motor PFAFF P74 ED-L ; Overload safety clutch ; Built in LED sewing light in the machine head. **Extra large vertical hook with 70% more thread capacity, for threads up to 10/3 (G)

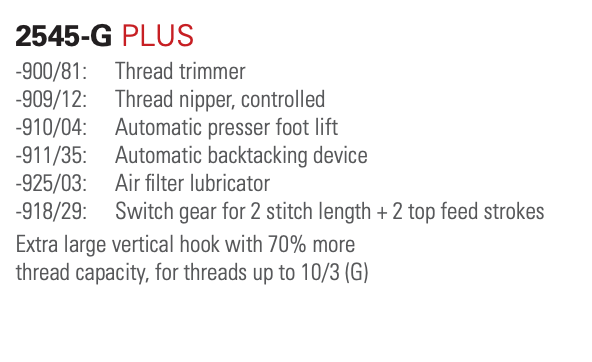

2545-G PLUS equipped with: -900/81: Thread trimmer-909/12: Thread nipperThread trimmer-909/12: Thread nipper, controlled
-910/04: Automatic presser foot lift
-911/35: Automatic backtacking device
-925/03: Air filter lubricator
-918/29: Switch gear for 2 stitch length + 2 top feed strokes. Extra large vertical hook with 70% more thread capacity, for threads up to 10/3 (G). & • Second thread tension electro-pneumatically controlled
• Adjustable top feed stroke up to 9 mm WITH quick change stepping control
with automatic speed setting
• Presser foot lift up to 20 mm, 1 stitch length up to 12.0 mm • Max. sewing speed 3,400 stitches/min.
• DC motor PFAFF P74 ED-L
• Overload safety clutch
• Built in LED sewing light in the machine head. **Extra large vertical hook with 70% more thread capacity, for threads up to 10/3 (G).
Standard Presser 9mm width:

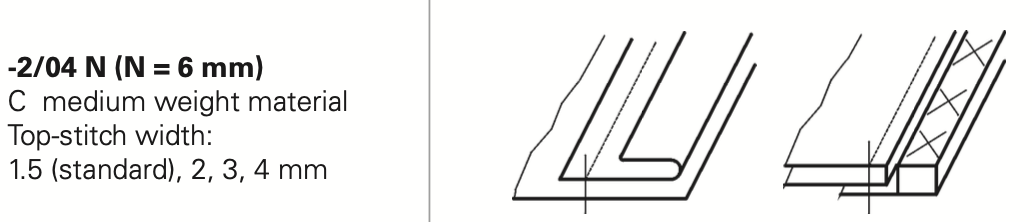

Left Presser 6mm width:

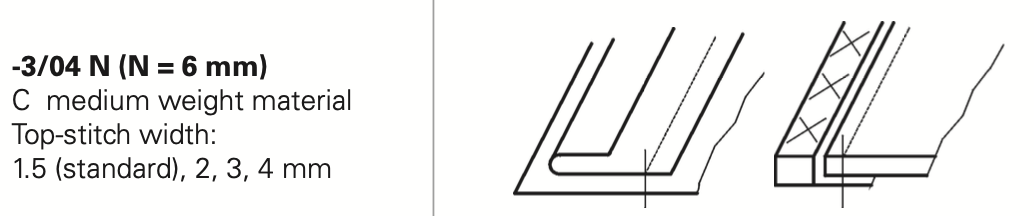

Right Presser 6mm width:
Climbing Presser 6mm / 9mm width:
1) 2545 = Machine head design/machine model
2) G = Extra Large Hook
3) 6/01 = Standard Part Set
4) C = for medium heavy materials
5) P = Four-motion drop feed and top feed machine
6) L = for stitching leather (machine sewn off and supplied with LR needle system)
7) M = overload (safety clutch)
8) N9 = maximum stich length 9 mm
