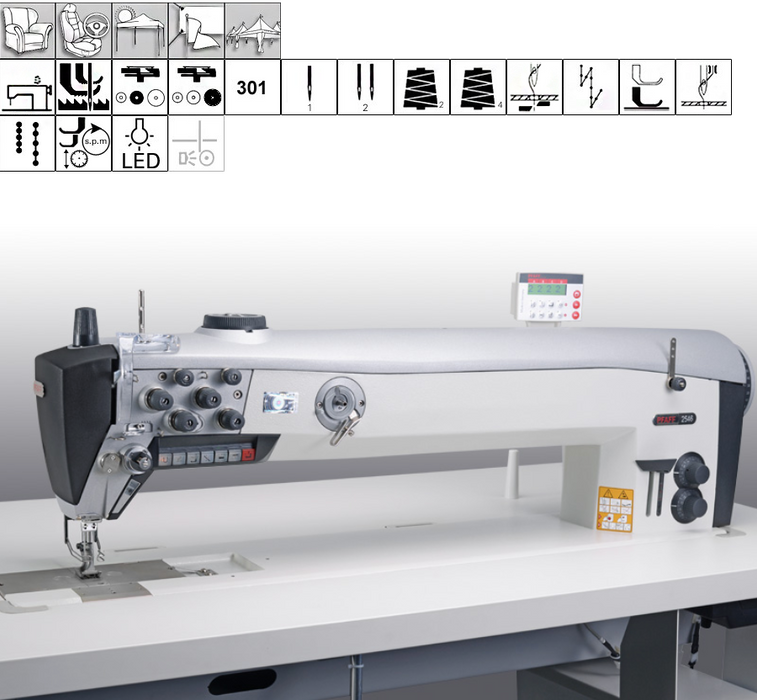

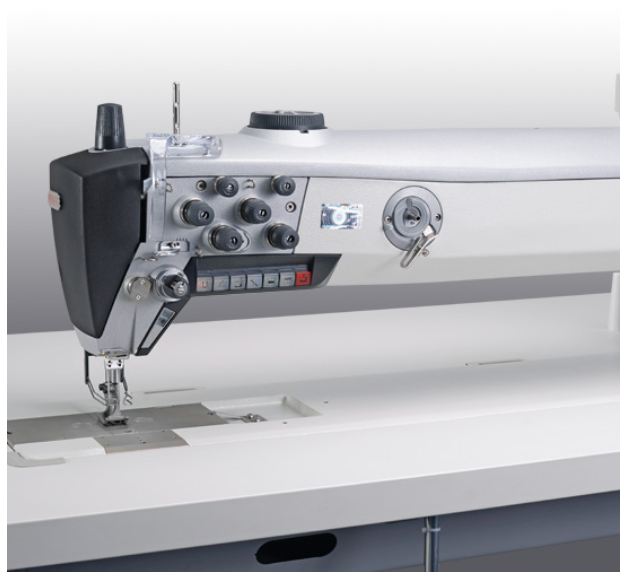

PFAFF 2545- 798/01-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9/P40CD - LONG ARM

Unison special high-speed sewing machines with vertical hook

Reduced electronics where they are needed and easily accessible functional parts make the POWERLINE ECO an uncomplicated, robust and service-friendly machine. It produces consistently high stitch quality and top sewing results both for top-stitching work in the visible area and for assembly and securing seams in the invisible area.

Short Intro for PFAFF 2545 variant (BASIC, PLUS, LONG-ARM)

1. PFAFF 2545-G-6/01 (BASIC)

Machine equipped with a complete set of head and table with standard accessories.

2. PFAFF 2545-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9/P40CD (PLUS)

Machine equipped with automatic thread trimming, automatic back tack, automatic foot lift, automatic high stroke change-over, and P40CD Servo motor.

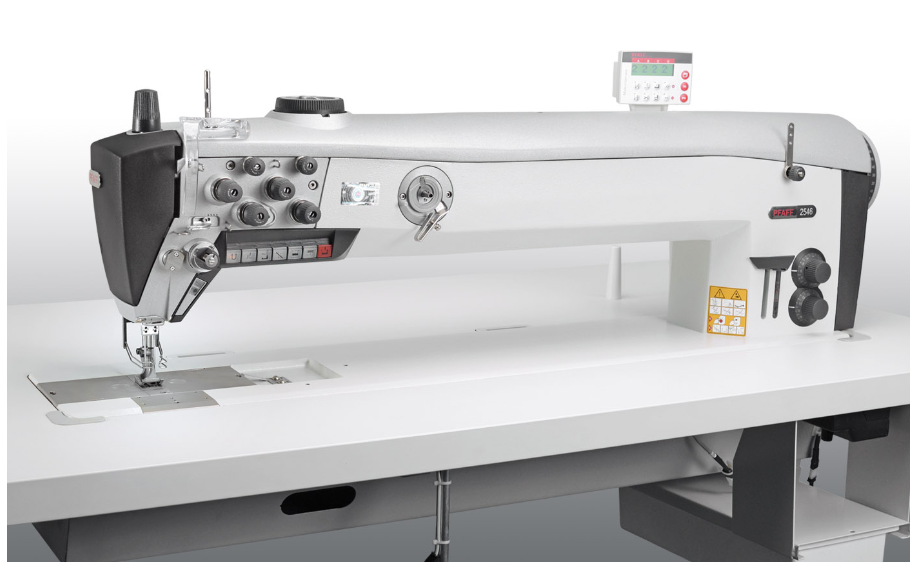

3. PFAFF 2545-798/01-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9 / P40CD (LONG ARM)

Machine equipped with automatic thread trimming, automatic back tack, automatic foot lift, automatic high stroke change-over, and the P40CD Servo motor with 70mm long arm.

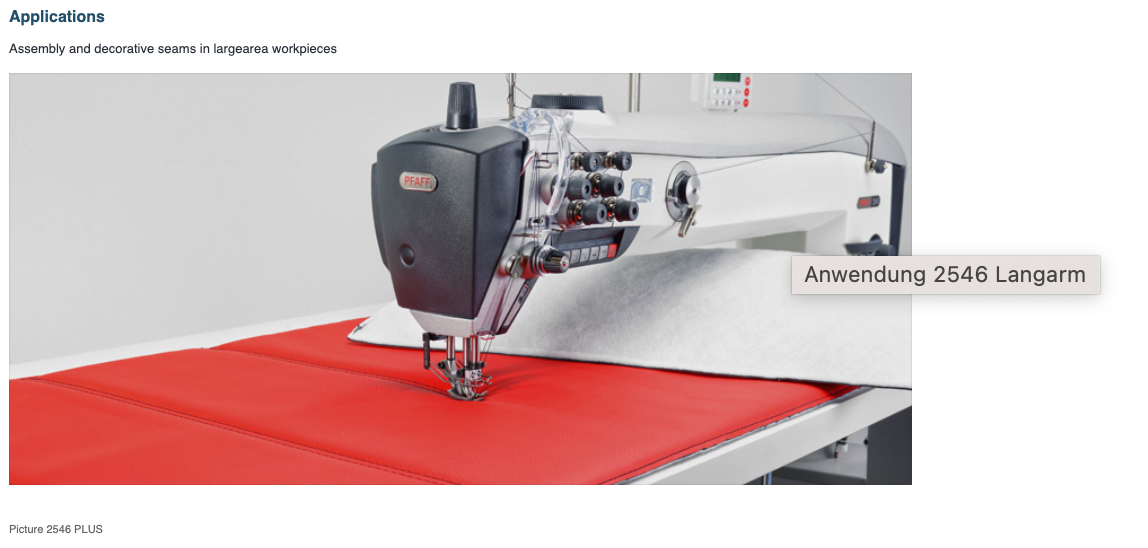

• The machine achieves a very high stitch quality both for top-stitching work in the visible areas and for securing and assembly seams
• The ergonomically designed dials guarantee quick and accurate adjustments of the first and second top feed stroke (with automatic speed adaption)
• Quick button for reverse sewing or backtacking
• Large clearance under machine arm (345.0 x 120.0 mm)
• Bobbin winder for a secure and fast start of the winding process ("winding assistant")

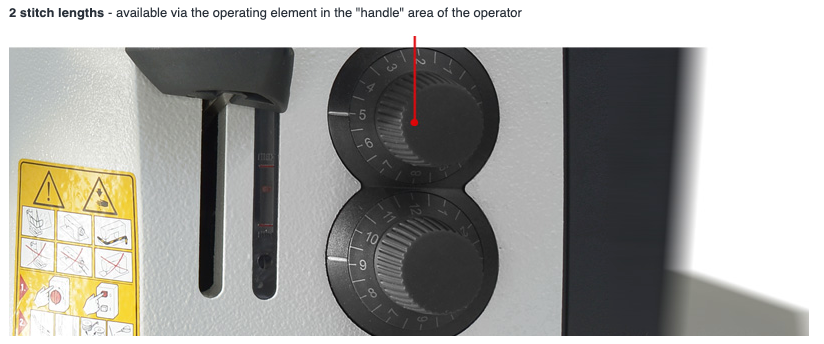

• Increased performance due to additional functions like integrated second stitch length, additional thread tension and quick stroke adjustment
• Direct drive
• BDF-S4 Control panel

Specifications

Needle system: 134-35
Needle size: C 110 - 140 Nm, D 150 - 200 Nm
Max. sewing speeds: 3.800 s.p.m
Max. stitch length: 12,0 mm
Max.Top feed stroke: 9,0 mm
Max. Thread thickness: C 15/3, D 8/3
Stitch type: 2x 301 (Lockstitch)
Clearance under the sewing foot: max. 20,0 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz

Download PFAFF_2545-G-6_01 CLPMN9 Brochure

Download PFAFF_2545-G-6_01 CLPMN9 Instruction Manual

Download PFAFF_2545-G-6_01 CLPMN9 Adjustment Manual

Contact Us for more information.
