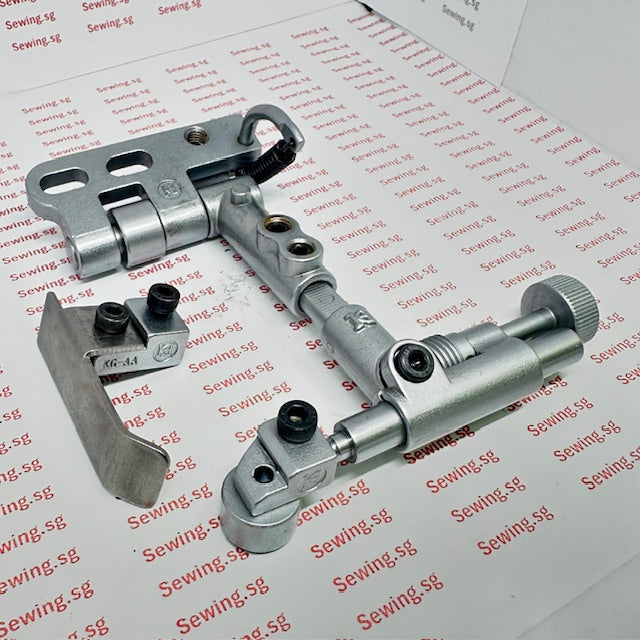

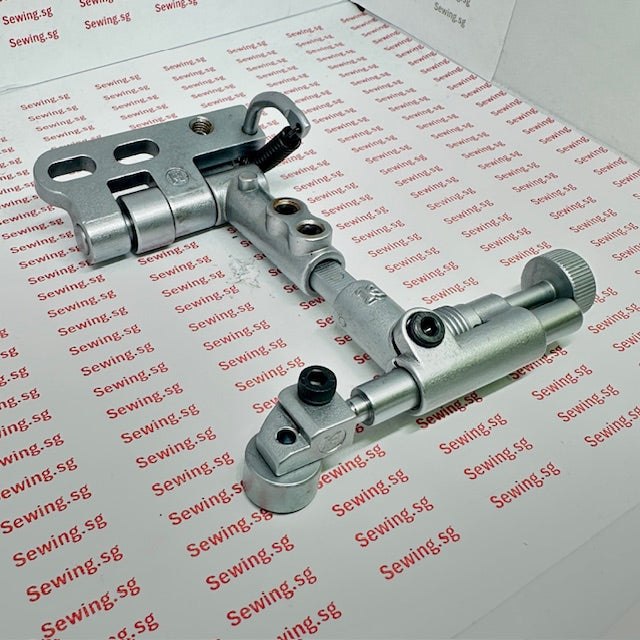

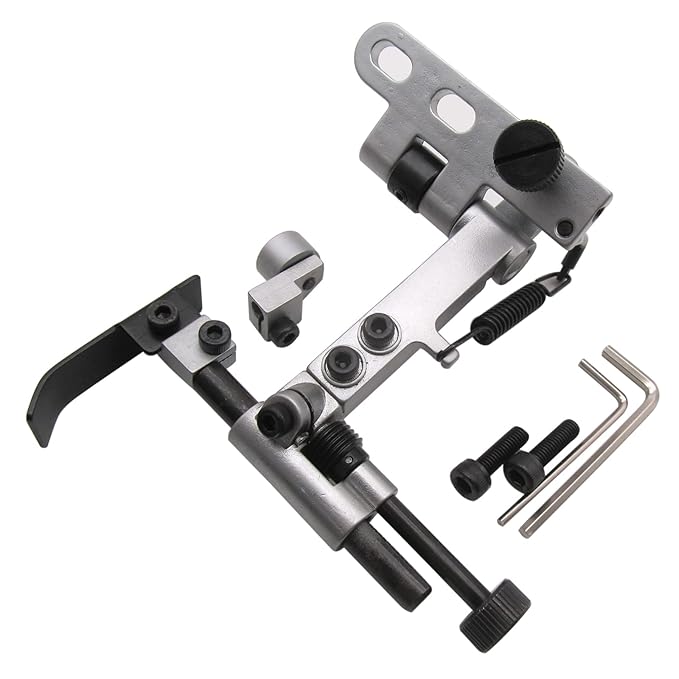

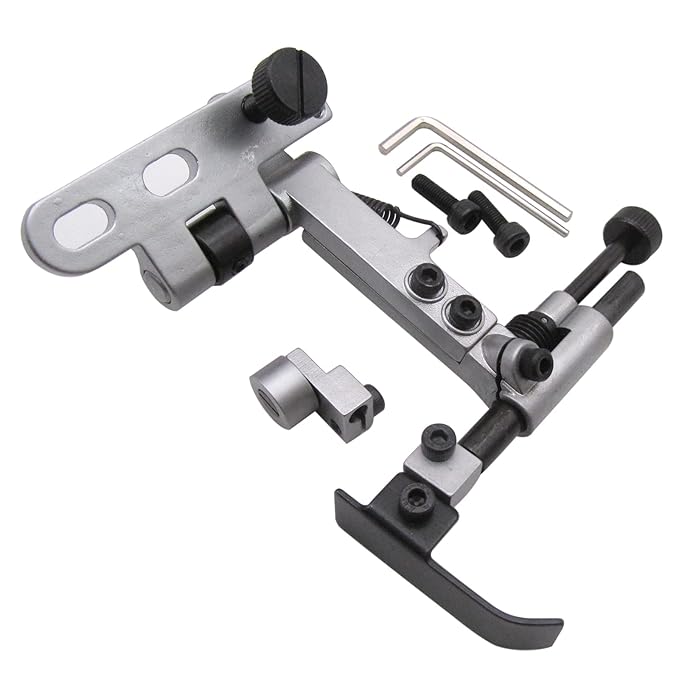

KG767A Suspending Edge Guide with Roller & Straight Guide

The KG767A Suspending Edge Guide is a high-quality, heavy-duty attachment designed for industrial sewing machines. Engineered for precision edge stitching, it mounts on the upper body of the machine, ensuring smooth material feeding without interference on the flatbed.

Key Features

• Suspended design – does not interfere with fabric movement
• Includes straight guide and 14mm diameter roller guide
• Adjustable length range: 70mm – 95mm
• Ideal for precise edge stitching and alignment
• Heavy-duty construction for industrial use

Specifications

• Part Number: KG767A
• Part Name: Suspending Edge Guide
• Adjustment Range: 70mm – 95mm
• Guide Type: Straight Guide + Roller Guide (14mm diameter)
• Quantity: 1 Set

Applications

• Perfect for edge stitching and parallel seams
• Suitable for heavy-duty materials such as leather and thick fabrics
• Widely used in industrial garment and upholstery production

Installation & Compatibility Notes

• Some machines may require drilling and tapping mounting holes
• Certain models may need an additional adapter for installation
• Ensure compatibility with your machine before purchase

The KG767A Suspending Edge Guide is compatible with a wide range of industrial sewing machines. Below are some commonly supported models:

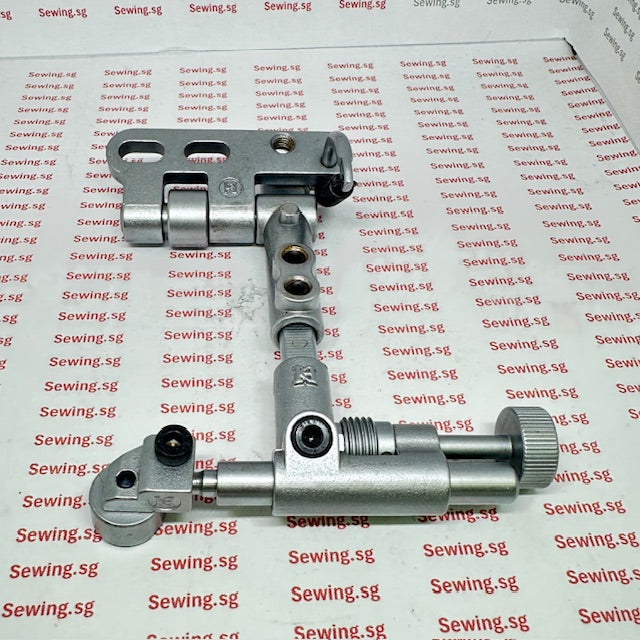

• Durkopp Adler 767: The primary model this guide is designed for, widely used for heavy-duty lockstitch applications.

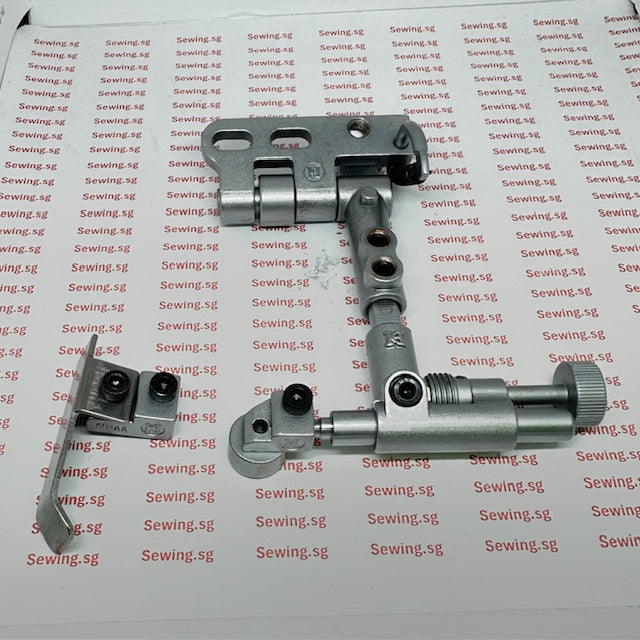

• Juki LU-2210: A high-speed, single-needle unison-feed lockstitch machine fully compatible with this guide.

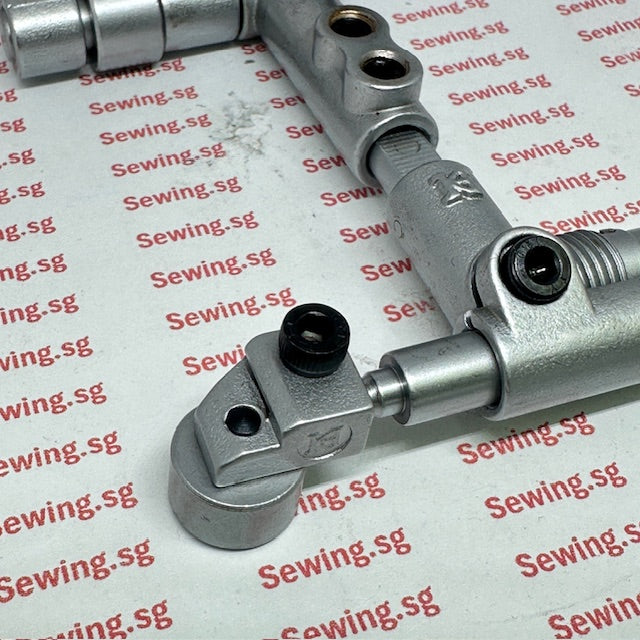

• Brother LS2-B891-705: An industrial sewing machine frequently listed as compatible with the KG767A.

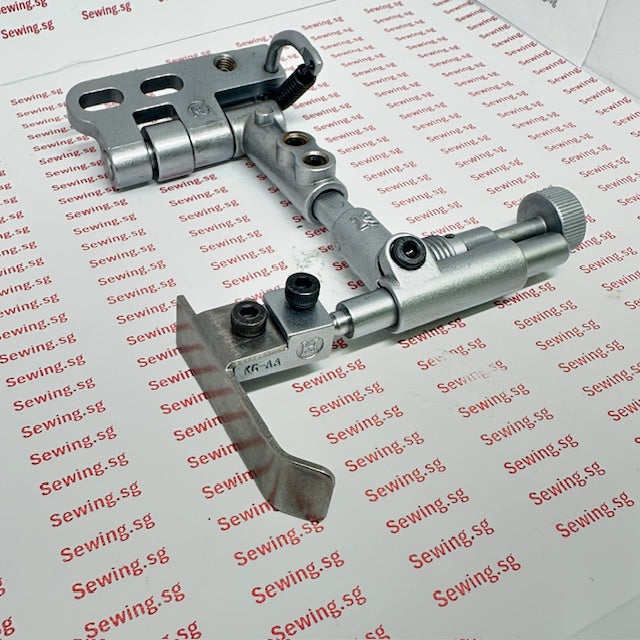

• Seiko BEW-8BLE: A heavy-duty machine suitable for precise edge stitching with this guide attachment.

• Durkopp Adler 205 (including 205-370): A robust machine ideal for thick materials such as leather, where this guide performs exceptionally well.

Compatibility Notes

While this guide is compatible with many industrial sewing machines, please note the following:

• Mounting Requirements: Some machines may require drilling and tapping mounting holes on the back of the machine body if they are not pre-installed.

• Adapters: Certain newer or alternative models (such as the Juki LU-2810) may require a specific adapter for proper installation of the suspended edge guide.

• Adjustment Range: The KG767A features an adjustable length range of 70mm to 95mm and includes both a straight guide and a 14mm diameter roller guide for enhanced precision.
