Juki
MO6704DA Series, Fully Sunken Table Top; 3-Thread Industrial Overlock Machine.
- 1 year warranty + Free 1 Year machine training in house at Clementi
- Free installation & Delivery Local Islandwide + Demo upon Delivery

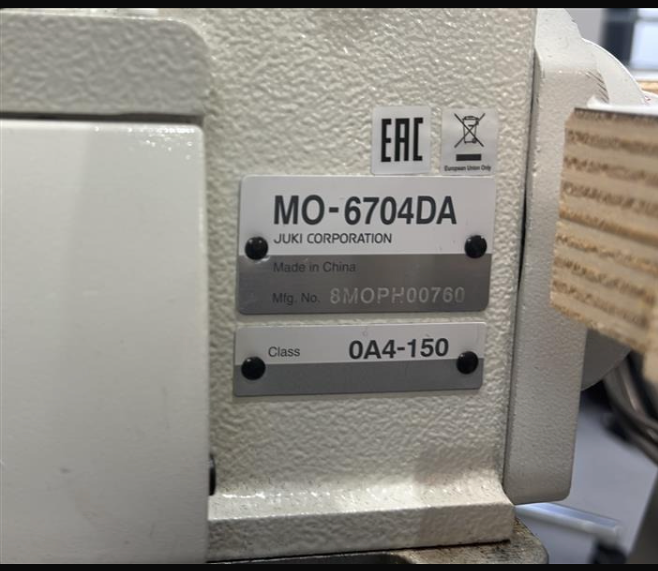

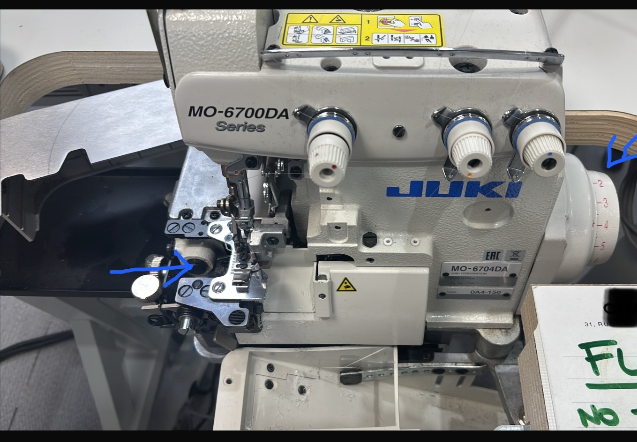

The JUKI MO-6704DA-0A4-150 is an industrial, single-needle, 3-thread overlock sewing machine purposefully engineered for precision rolled hemming.
Configured in a premium fully sunken tabletop setup, the machine head rests completely flush with the table surface. This configuration creates a seamless workspace that facilitates smooth material transitions, prevents fabric dragging, and minimizes operator fatigue during high-volume apparel manufacturing.
Pristine Rolled Edge Seam Quality
The subclass "0A4-150" features a specialized throat plate, feed dog, and presser foot assembly calibrated to produce an ultra-narrow, dense 1.6mm edge finish. It incorporates JUKI's advanced semi-dry head technology, isolating lubrication from the needle bar and upper looper mechanisms. This design guarantees that delicate translucent or light-colored textiles remain free of oil spots, dramatically decreasing factory reject rates and eliminating chemical stain-removal cycles.
The machine creates highly elastic, micro-dense chain-stitching that mimics hand-rolled quality while ensuring absolute industrial durability.
-
Dense Pearl Edging: Creates an aesthetic border on lightweight wovens.
-
Narrow Rolled Overlock: Safely secures sheer edges against fraying.
Contemporary Roll Hem Fashion Applications
This specialized subclass plays a critical role in realizing modern fashion aesthetics across light to extra-lightweight textiles:
-
Fluids and Flounces in Silk Bridal Wear: Designers rely on this 1.6mm rolled hem to finish layers of silk organza and delicate wedding veils. It anchors the fabric edge cleanly without adding unnecessary structural bulk or changing the textile's natural drape.
- Wavy Lettuce Edges on Knit Activewear: In contemporary resort and lightweight knitwear design, operators utilize the machine's differential feed to stretch elastic fabrics intentionally as they pass the blade. This creates a playful ruffle or "lettuce-edge" finish on hemlines and cuffs.
High-Speed Ease of Operation
Operating at a blistering maximum speed of 7,000 stitches per minute, the MO-6704DA maintains smooth stability with negligible vibration. JUKI simplifies intricate micro-adjustments via highly responsive mechanical controls:
-
Push-Button Stitch Regulator: Operators can instantly modify stitch density and length (ranging from 0.8mm to 4mm) to match material weight by pressing an external button and turning the handwheel.
-
Micro-Adjustable Differential Feed: A convenient lever system fine-tunes the ratio between front and rear feed dogs from 1:0.7 up to 1:2. This eliminates unintended fabric puckering, twisting, or wavy distortions on problematic bias cuts.
-
Optimized Looper Trajectory: The upper looper path delivers well-tensed, soft-feeling seams under lower thread tensions, drastically reducing operator threading errors and thread breakage.
The fully submerged table layout optimizes hand placement, allowing operators to glide fabric through the cutting blades and stitching zone with natural movements and minimal exertion.
Model name
Stitch type
Max. sewing speed
Stitch length
Needle gauge (mm)
Overedging width (mm)
Differential feed ratio
- For gathering 1:2 (Max. 1:4),
- For stretching 1:0.7 (Max. 1:0.6)
Needle
Export Packaging:
-
Juki MO6704 Head:36kg -480x340x500mm. = 0.081cbm.
- Table: 18kg - 1070x570x40mm. = 0.024 cbm.
- Stand: 20kg - 800x580x140mm. = 0.064 cbm.
- Total box-3
